Description

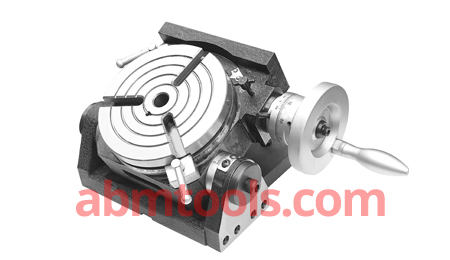

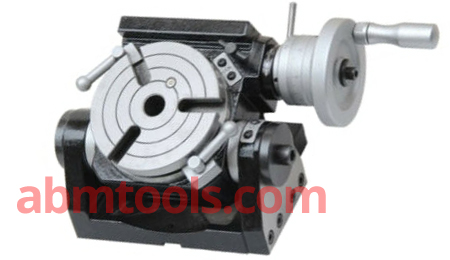

• Available Rotary Milling Table Plain and Horizontal & Vertical System.
• Available with and without indexing Device.
• Dual position tables used for indexing, circular cutting, angle setting, boring and spot facing operations
• Features dual positive action locks with extra deep coolant channel.
• Table clamping surface are precision ground and cylindrical center bore concentric.
• Table Surface id accurately Ground and base of the body to ensure smooth Rotation
• Gear Ratio 90 : 1S
• Center Sleeve MT 2
• Can be Tilted from 0 to 180 Degree.
• Engage & Disengage function for manual indexing.
| Item Code No. | Type | Table Dia. | Overall Height | Vertical Center Height mm | T Slot Width mm |
|---|---|---|---|---|---|
| ABM-VC-2690 | Tilting | 6" / 150mm | 5" / 125mm | 97 | 16 |
| ABM-VC-2691 | Rotary Table + Clamping Kit | ||||
| ABM-VC-2692 | Rotary Table + Dividing Plate Set | ||||
| ABM-VC-2693 | Rotary Table + Dividing Plate Set + Tailstock | ||||
