Description
• Available Rotary Milling Table Plain and Horizontal & Vertical System.
• Available with and without indexing Device.
• Dual position tables used for indexing, circular cutting, angle setting, boring and spot facing operations
• Horizontal and Vertical Rotary Table comes with 360 degree graduations.
• Features dual positive action locks with extra deep coolant channel.
• Table clamping surface are precision ground and cylindrical center bore concentric.
• Table Surface id accurately Ground and base of the body to ensure smooth Rotation
• Gear Ratio 90 : 1
• Center Sleeve MT 3

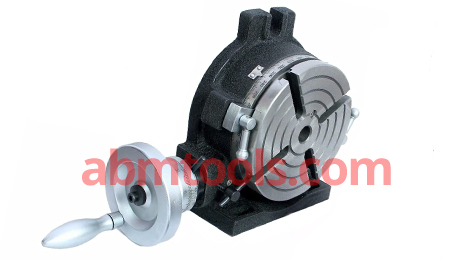

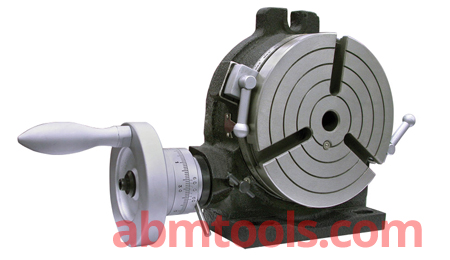

3 Slot
| Item Code No. 3 Slot | Type | Table Dia. | Overall Height | Vertical Center Height mm | T Slot Width mm |
|---|---|---|---|---|---|
| ABM-VC-2670 | H&V | 8" / 200mm | 4-1/4" / 108mm | 135 | 24 |
| ABM-VC-2671 | Rotary Table + Clamping Kit | ||||
| ABM-VC-2672 | Rotary Table + Dividing Plate Set | ||||
| ABM-VC-2673 | Rotary Table + Dividing Plate Set + Tailstock | ||||

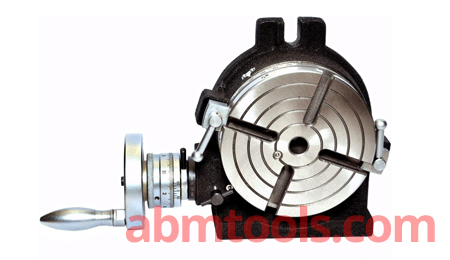

4 Slot
| Item Code No. 4 Slot | Type | Table Dia. | Overall Height | Vertical Center Height mm | T Slot Width mm |
|---|---|---|---|---|---|
| ABM-VC-2674 | H&V | 8" / 200mm | 4-1/4" / 108mm | 135 | 24 |
| ABM-VC-2675 | Rotary Table + Clamping Kit | ||||
| ABM-VC-2676 | Rotary Table + Dividing Plate Set | ||||
| ABM-VC-2677 | Rotary Table + Dividing Plate Set + Tailstock | ||||
* H&V Means Horizontal & Vertical
