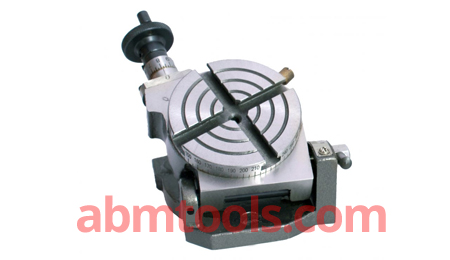

A rotary table is a precision work positioning device used in metalworking. It enables the operator to drill or cut work at exact intervals around a fixed (usually horizontal or vertical) axis. Some rotary tables allow the use of index plates for indexing operations, and some can also be fitted with dividing plates that enable regular work positioning at divisions for which indexing plates are not available.

Loading...

Description

• Available Rotary Milling Table Plain and Horizontal & Vertical System.
• Available with and without indexing Device.
• Dual position tables used for indexing, circular cutting, angle setting, boring and spot facing operations
• Features dual positive action locks with extra deep coolant channel.
• Table clamping surface are precision ground and cylindrical center bore concentric.
• Table Surface id accurately Ground and base of the body to ensure smooth Rotation.

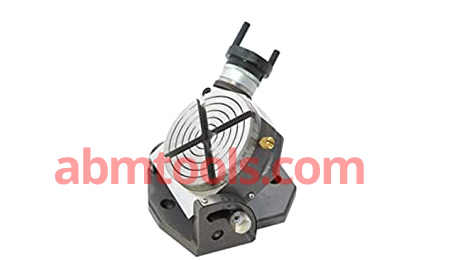

• Table tilts upto 90º  and can be used anywhere in between and locked.
• The table is graduated 0-360º  in 5º divisions



Item Code No.TypeTable Dia.Overall HeightT Slot Width
mm
Gear Ratio
ABM-VC-2520Tilting3" / 75mm2-1/8" / 55mm13mm36:1
ABM-VC-2521Rotary Table + Clamping Kit
ABM-VC-2522Rotary Table + 3 Jaw 65 mm Self Centering Lathe Chuck + Back Plate
ABM-VC-2523Rotary Table + 4 Jaw 70 mm Independent Lathe Chuck + Back Plate
