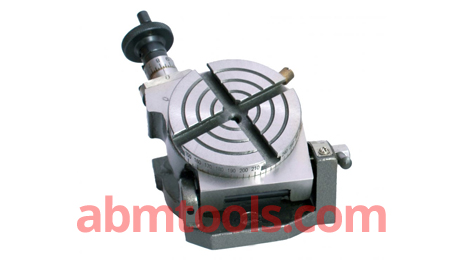

Description
• Available Rotary Milling Table Plain and Horizontal & Vertical System.
• Available with and without indexing Device.
• Dual position tables used for indexing, circular cutting, angle setting, boring and spot facing operations
• Features dual positive action locks with extra deep coolant channel.
• Table clamping surface are precision ground and cylindrical center bore concentric.
• Table Surface id accurately Ground and base of the body to ensure smooth Rotation.
• Hand Wheel can be set to zero
• Hand Wheel graduated in 10 min divisions
• Calibrated in 5 min increment around the rim
• 36 : 1 ratio
• The table is Graduated 0 – 360º in 5 min divisions

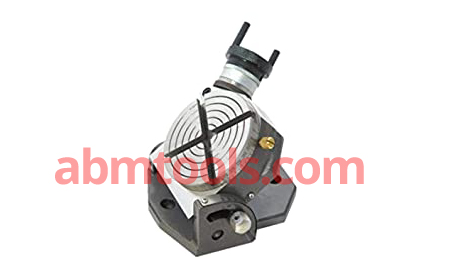

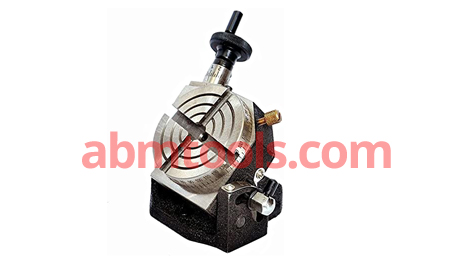

• Table tilts upto 90º and can be used anywhere in between and locked.
| Item Code No. | Type | Table Dia. | Overall Height | T Slot Width mm | Gear Ratio |
|---|---|---|---|---|---|
| ABM-VC-2560 | Tilting | 4" / 100mm | 2-5/8" / 67mm | 13mm | 36:1 |

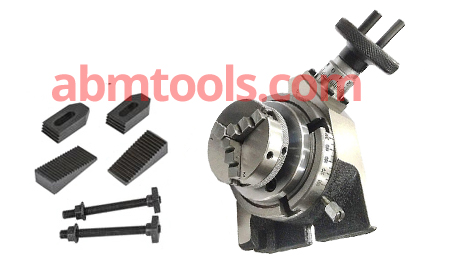

| ABM-VC-2561 | Rotary Table + Clamping Kit | ||||

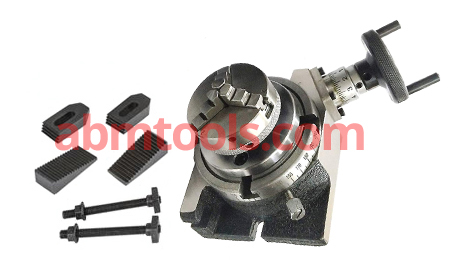

| ABM-VC-2562 | Rotary Table + 3 Jaw 65 mm Self Centering Lathe Chuck + Back Plate | ||||
| ABM-VC-2563 | Rotary Table + 4 Jaw 70 mm Independent Lathe Chuck + Back Plate | ||||
