Description
• To be used in manual and NC Machining Centers.
• These cutters are preferred over form relief type cutters for Milling Female Half Circles.
• Full radius design with a weldon shank.
• Can be resharpened by grinding the face of the teeth without changing the form.

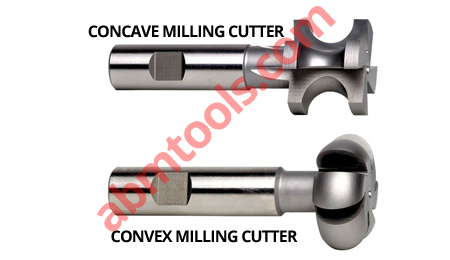

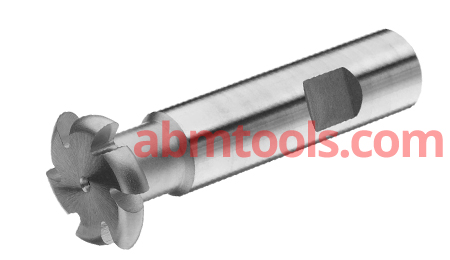

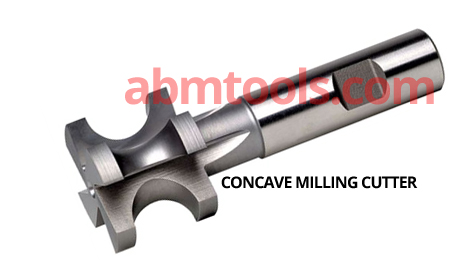

| CONCAVE Item code No. | Radius | Cutter Dia. | Shank Dia. | No. of Flutes | Overall Length |
|---|---|---|---|---|---|
| ABM-CT-14220 | 1/32" | 3/4" | 1/2" | 6 | 3" |
| ABM-CT-14221 | 1/16" | 3/4" | 1/2" | 6 | 3" |
| ABM-CT-14222 | 3/32" | 3/4" | 1/2" | 6 | 3" |
| ABM-CT-14223 | 1/8" | 1" | 3/4" | 6 | 3-1/2" |
| ABM-CT-14224 | 5/32" | 1" | 3/4" | 6 | 3-1/2" |
| ABM-CT-14225 | 3/16" | 1" | 3/4" | 6 | 3-1/2" |
| ABM-CT-14226 | 1/4" | 1-1/4" | 3/4" | 4 | 3-1/4" |
| ABM-CT-14227 | 5/16" | 1-1/4" | 3/4" | 4 | 4" |
| ABM-CT-14228 | 3/8" | 1-1/2" | 3/4" | 4 | 4-3/16" |

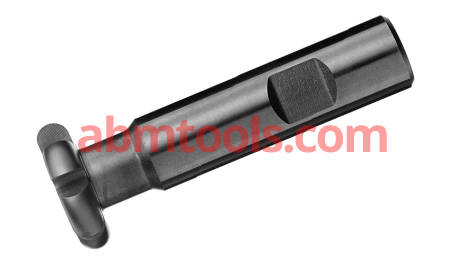

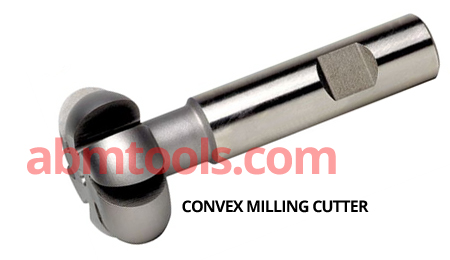

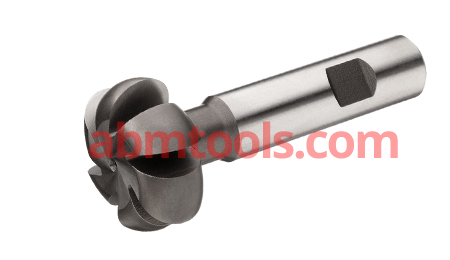

| CONVEX Item code No. | Radius | Cutter Dia. | Shank Dia. | No. of Flutes | Overall Length |
|---|---|---|---|---|---|
| ABM-CT-14240 | 1/32" | 3/4" | 1/2" | 6 | 3" |
| ABM-CT-14241 | 1/16" | 3/4" | 1/2" | 6 | 3" |
| ABM-CT-14242 | 3/32" | 7/8" | 1/2" | 6 | 3" |
| ABM-CT-14243 | 1/8" | 1-1/4" | 3/4" | 6 | 3-1/2" |
| ABM-CT-14244 | 5/32" | 1-5/16" | 3/4" | 6 | 3-1/2" |
| ABM-CT-14245 | 3/16" | 1-3/8" | 3/4" | 6 | 3-1/2" |
| ABM-CT-14246 | 1/4" | 1-1/2" | 3/4" | 4 | 4" |
| ABM-CT-14247 | 5/16" | 1-5/8" | 3/4" | 4 | 4" |
| ABM-CT-14248 | 3/8" | 1-3/4" | 3/4" | 4 | 4" |
