Description
• High-speed steel tools are good for most general purpose applications, offering a combination of hardness and toughness for wear resistance.
• Uncoated end mills feature just the base substrate without any additional treatment or coatings and are suitable for a wide range of applications.

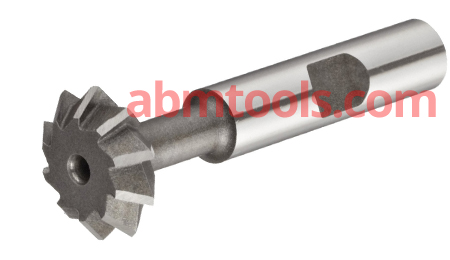

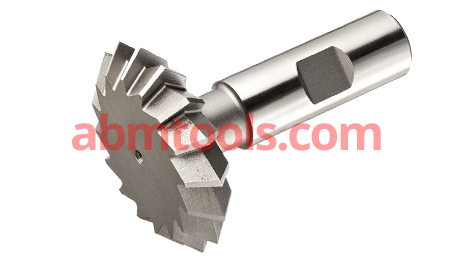

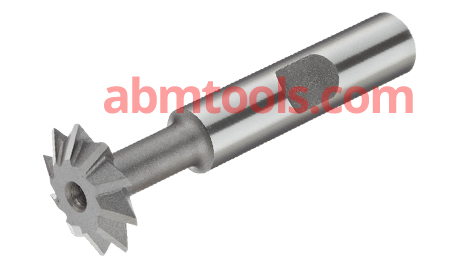

• For milling a double angle cut in one pass.
| 60º Item code No. | Cutter Dia. | Face Width | Shank Dia. | Overall Length |
|---|---|---|---|---|
| ABM-CT-14190 | 3/4" | 3/16" | 3/8" | 2-3/8" |
| ABM-CT-14191 | 1" | 5/16" | 1/2" | 2-17/32" |
| ABM-CT-14192 | 1-3/8" | 7/16" | 5/8" | 3-7/32" |
| ABM-CT-14193 | 1-1/2" | 1/2" | 5/8" | 3-3/8" |
| ABM-CT-14194 | 1-7/8" | 5/8" | 3/4" | 3-25/32" |
| ABM-CT-14195 | 2-1/4" | 3/4" | 7/8" | 4-5/32" |
| 90º Item code No. | Cutter Dia. | Face Width | Shank Dia. | Overall Length |
|---|---|---|---|---|
| ABM-CT-14200 | 3/4" | 1/4" | 3/8" | 2-7/16" |
| ABM-CT-14201 | 1" | 3/8" | 1/2" | 2-29/32" |
| ABM-CT-14202 | 1-3/8" | 1/2" | 5/8" | 3-9/32" |
| ABM-CT-14203 | 1-1/2" | 9/16" | 5/8" | 3-7/16" |
| ABM-CT-14204 | 1-7/8" | 5/8" | 3/4" | 3-25/32" |
| ABM-CT-14205 | 2-1/4" | 3/4" | 7/8" | 4-5/32" |
