Description

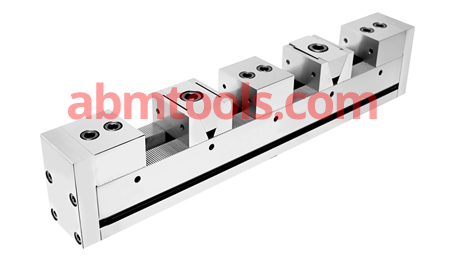

- Precision Multi Grip Machine Vices are compact, rigid & specially designed for clamping multiple workpieces of various sizes.
- The use of Multi Grip Vice maximizes the machine table capacity and helps to increase productivity.
- The system is compact & reliable for holding multiple workpieces at the same time thereby reducing tool changeover times.
- Have Precise accuracy in positioning and alignment± 0.02 mm.
- Vice Body & Accessories are of High Quality Alloy Steel, Case Hardened HRC 60 ± 2 for maximum rigidity, high performance & longer life without wear.
- It is Supplied with 3 fixed jaws & two wedge clamps.
| Item Code No | ABM-VC-11017 |
|---|---|
| Width of Jaws mm | 70 |
| Length Overall mm | 540 |
| Height Overall mm | 110 |
| Tenon Slot Size mm | 12 |
| Weight Approx Kg. | 22 Kg. |
