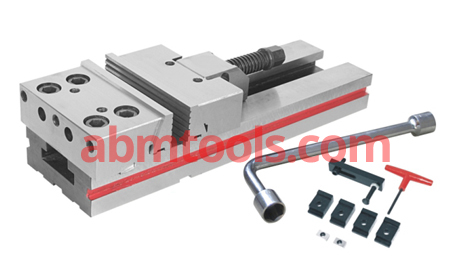

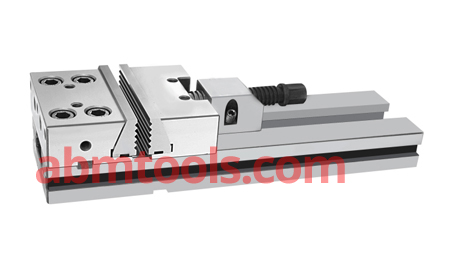

Description
• High Quality Alloy Steel.
• Accuracy In Squareness 0.01/100 mm
• Case Hardened HRC 60 ±2 To Give Maximum Rigidity, High Performance & No Wear.
• Can Be Used Multiple Style.
• Both Jaws Plates Are In Pull-Down Angle.
• This Ensures Anti-Lift Clamping Of The Workpiece.
• Low Profile.
• Supplied With Stopper For Fast Production
| Item code No. | ABM-VC-11170 | ABM-VC-11171 | ABM-VC-11172 |
|---|---|---|---|
| Size in Inches | 4 Inch (100 mm) | 6 Inch (150 mm) | 8 Inch (200 mm) |
| Width of Jaws in mm | 100 | 150 | 200 |
| Opening of Jaws in mm | 130 | 225 | 300 |
| Depth of Jaws in mm | 30 | 50 | 60 |
| Length Overall in mm | 325 | 420 | 555 |
| Height Overall in mm | 71 | 98 | 118 |
| Width Overall in mm | 102 | 150 | 230 |
| Tenon Slot Size in mm | 16 | 16 | 16 |
| Weight Approx Kg. | 9 | 28 | 48 |
