Description

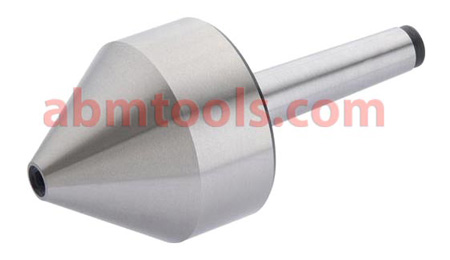

Bull Nose live centers are typically used in applications where the center hole is a large bore or when the application calls for the machining of pipe or other cylindrical components such as hydraulic cylinders. Oil field maintenance facilities, manufacturers of power generation components, and pipe manufacturers all rely on the durability of heavy duty bull nose live centers.
• Manufactured to precision from case hardened steel.
• Concentricity within 0.015 mm Internal Taper as per DIN 228 and external Taper R8.
• Designed to hold Pipe and hollow work.
• Hardened to 55 – 60 HRC.
• Preloaded bearing to achieve good thrust and redial capacities.
| Item Code No. | Morse Taper No. | Head Dia. Inch | Head Dia. mm | Nose length Inch | Nose Length mm | Nose Dia. Inch | Nose Dia. mm | Angle |
|---|---|---|---|---|---|---|---|---|
| ABM-IMT-4300 | MT 2 | 2.48 | 63 | 1.42 | 36 | 0.46 | 11.7 | 70 Degree |
| ABM-IMT-4301 | MT 3 | 3.07 | 78 | 1.65 | 42 | 0.71 | 18 | 70 Degree |
| ABM-IMT-4302 | MT 4 | 5.04 | 128 | 2.45 | 62 | 1.38 | 35 | 75 Degree |
| ABM-IMT-4303 | MT 5 | 5.80 | 147 | 2.90 | 73 | 1.38 | 35 | 75 Degree |
