Description
• Manufactured from high grade carbon steel or HSS or Carbide, properly hardened & tempered.
• The cutting edge of all the cutters are accurately ground for best results.

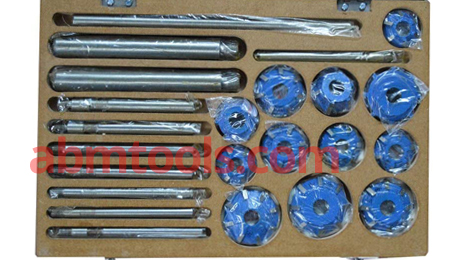

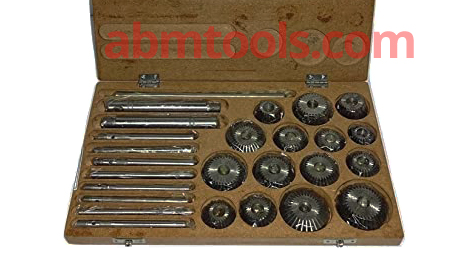

• Sets supplied in fine finished wooden box.
• Suitable for re-cutting inlet/exhaust valve seats concentric to the valve guides.
• Features cutting blades, expandable pilots and double end cutters for increased application.
While placing order please mention Carbon Steel or High Speed Steel (HSS) or Carbide
| Item Code No. | No. of Pcs in Each Set | Sizes of Valve Seat & Face Cutter Included Inches | Sizes of Bore Cutters Included |
|---|---|---|---|
| ABM-IMT-8431 | 3 Pcs Set | 1-5/16 & 1-7/16 (45°) (Supplied with 2 Nos. Guides, 1 Nos. Each Handle, Rod & Small Pin) | 1-3/8" (20°) |
| ABM-IMT-8432 | 4 Pcs Set | 1-5/16, 1-7/16 & 1-3/8 (45°) (Supplied with 2 Nos. Guides, 1 Nos. Each Handle, Rod & Small Pin) | 1-3/8" (20°) |
| ABM-IMT-8433 | 10 Pcs Set | 1-3/16, 1-1/4, 1-5/16, 1-3/8, 1-1/2, 1-11/16, 1-1/4 & 1-9/16 (20°), 1-3/4 (45°) & 1-11/16 (30°) (Supplied with 8 Nos. Guides, 2 Nos. Each Handle, 2 Rods & Small Pin) | 1-1/4" & 1-9/16" (20°) |
| ABM-IMT-8434 | 12 Pcs Set | 1-3/16, 1-1/4, 1-5/16, 1-3/8, 1-1/2, 1-11/16, 1-1/4 & 1-9/16 (20°), 1-3/4 (45°), 1-11/16 (30°) & 2-1/16 (45°) (Supplied with 8 Nos. Guides, 2 Nos. Each Handle, 2 Rods & Small Pin) | 1-1/4", 1-9/16" (20°) & 1-3/4 (45°) |
| ABM-IMT-8435 | 15 Pcs Set | 1-3/16, 1-1/4, 1-5/16, 1-3/8, 1-1/2, 1-11/16, 1-1/4 & 1-9/16 (20°), 1-3/4 (45°), 1-11/16 (30°) & 2-1/16, 1-7/16, 1-5/8 & 2-1/8 (45°) (Supplied with 8 Nos. Guides, 2 Nos. Each Handle, 2 Rods & Small Pin) | 1-1/4", 1-9/16" (20°) & 1-3/4 (45°) |
| ABM-IMT-8436 | 20 Pcs Set | 1-3/16, 1-1/4, 1-5/16, 1-3/8, 1-1/2, 1-11/16, 1-1/4 & 1-9/16 (20°), 1-3/4 (45°), 1-11/16 (30°) & 2-1/16, 1-7/16, 1-5/8. 2-1/8, 1-1/8, 1-7/8 & 2-1/4 (45°) (Supplied with 8 Nos. Guides, 2 Nos. Each Handle, 2 Rods & Small Pin) | 1-1/4", 1-9/16" (20°), 1-3/4 & 2"(45°) |
