Description

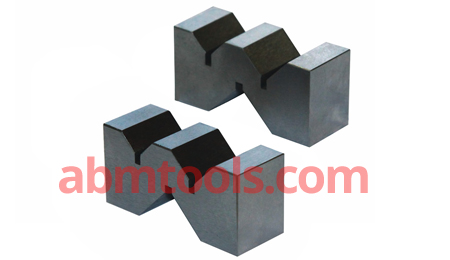

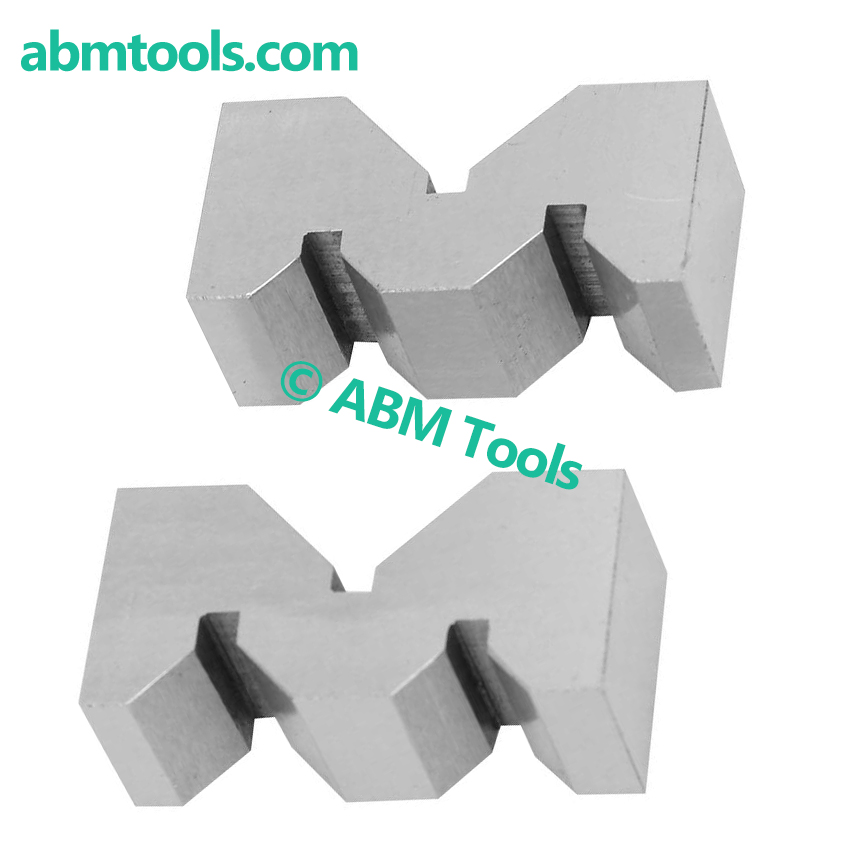

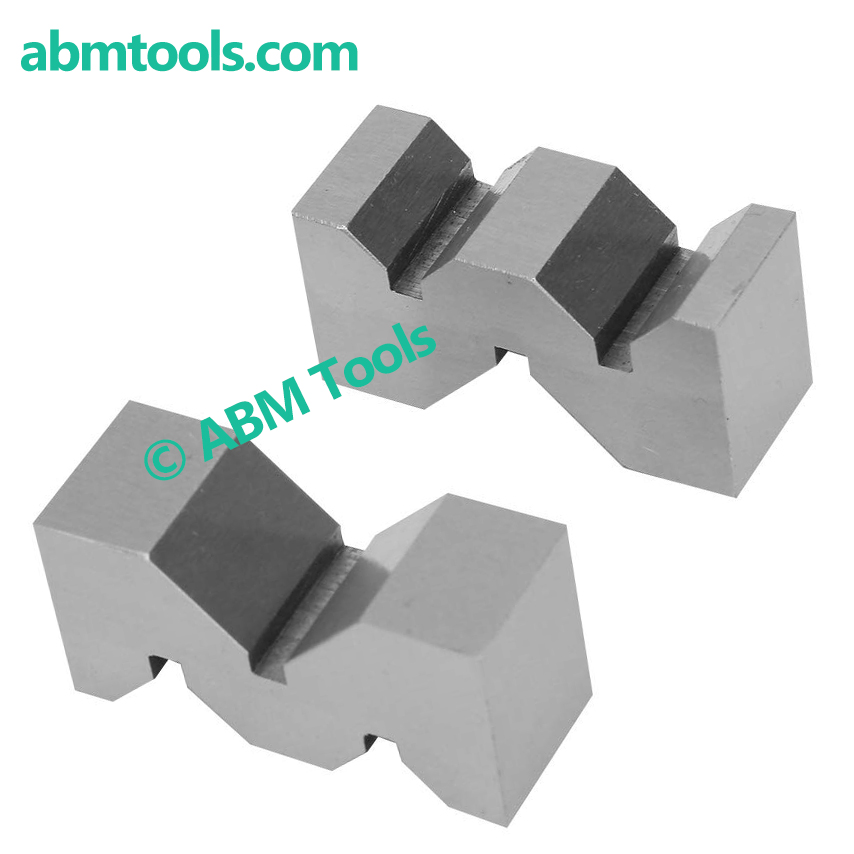

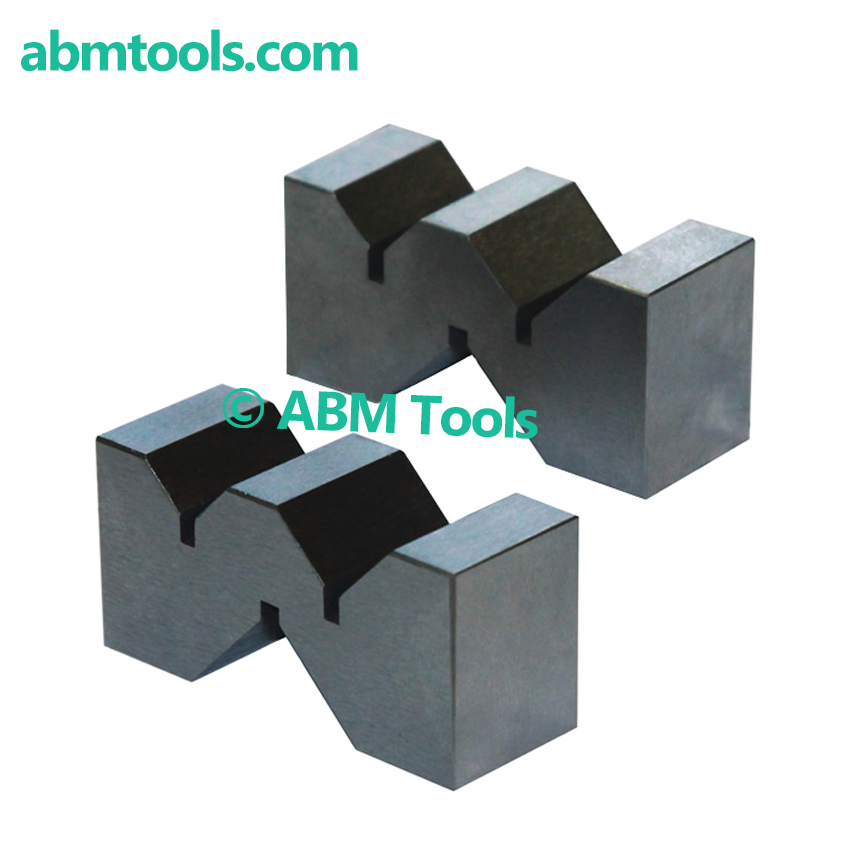

TRIPLE V BLOCK
PRECISION NON MAGNETIC M TYPE V BLOCK
• Manufactured from steel.
• Every angle 90 Degree.
• Matched Pairs.

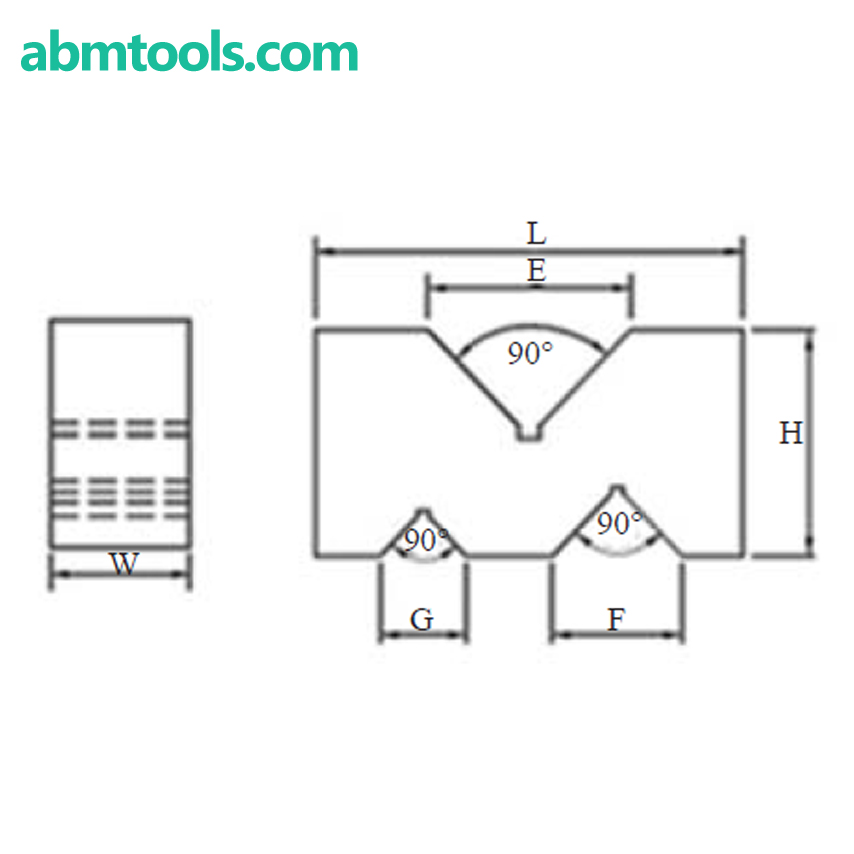

| Item Code No. | Length L mm | Width W mm | Height H mm | E mm | F mm | G mm |
|---|---|---|---|---|---|---|
| ABM-EPT-9880 | 50 | 19 | 24 | 24 | 17 | 13 |
| ABM-EPT-9881 | 75 | 24 | 35 | 37 | 24 | 16 |
| ABM-EPT-9882 | 100 | 33 | 52 | 50 | 30 | 20 |
| ABM-EPT-9883 | 125 | 44 | 69 | 63 | 37 | 26 |
| ABM-EPT-9883A | 150 | 50 | 80 | 75 | 45 | 30 |
| ABM-EPT-9883B | 175 | 62 | 90 | 87 | 50 | 35 |
| ABM-EPT-9883C | 200 | 70 | 110 | 100 | 60 | 40 |
