Description
It helps to create a strong internal thread in soft metals and protects tapped threads against wear and damage.

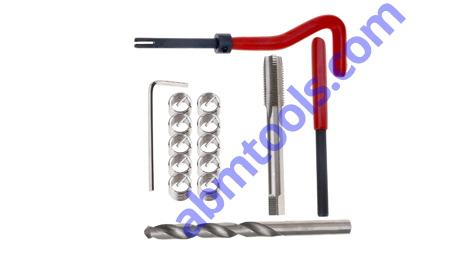

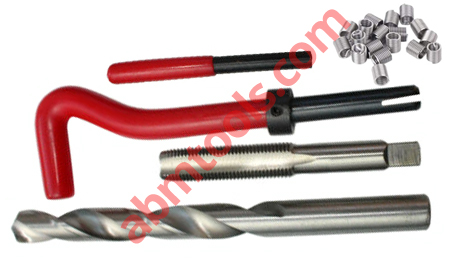

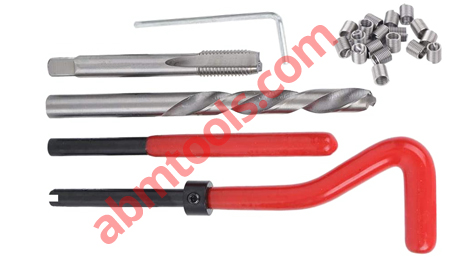

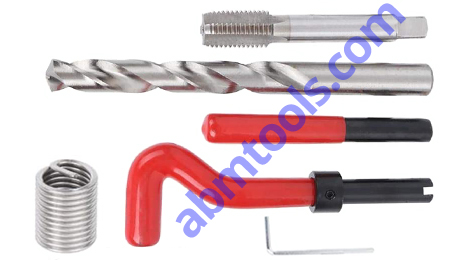

This thread repair kit contains installation tool, thread tap, drill, wire thread inserts and Break Off Tang.
Perfect for restoring damaged threads.
Comes with a case of easy storage and carry, convenient for repair work use.
KIT CONTAINS
| Contains Following items | Pictures |
|---|---|
| HSS Helical Tap Screw Thread Insert Tap (STI) |  |
| HSS Twist Drill |  |
| Insertion Tool |  |
| Break off Tangs |  |
| Inserts |  |
METRIC
| Item Code No. Metric | Set Contains | HSS Helical Tap | HSS Twist Drill-mm | Insertion Tool | Tang Break Off Tool | Inserts Pcs. |
|---|---|---|---|---|---|---|
| ABM-TRK-5580 | 140 Pcs. Set | M5 x 0.8 M6 x 1.0 M8 x 1.25 M10 x 1.5 M12 x 1.75 | 5.2 mm 6.3 mm 8.3 mm 10.4 mm 12.4 mm | No. 8 No. 9 No. 11 No. 13 No. 15 | No. 8 No. 9 No. 11 No. 13 No. 15 | 25 25 25 25 20 |
| ABM-TRK-5581 | 87 Pcs. Set | M5 x 0.8 M6 x 1.0 M8 x 1.25 | 5.2 mm 6.3 mm 8.3 mm | No. 8 No. 9 No. 11 | No. 8 No. 9 No. 11 | 25 25 25 |
UNC
| Item Code No. UNC | Set Contains | HSS Helical Tap | HSS Twist Drill-mm | Insertion Tool | Tang Break Off Tool | Inserts Pcs. |
|---|---|---|---|---|---|---|
| ABM-TRK-5590 | 130 Pcs. Set | 1/4 x 20 5/16 x 18 3/8 x 16 7/16 x 14 1/2 x 13 | 6.7 mm 8.3 mm 9.9 mm 11.6 mm 13.0 mm | No. 9 No. 10 No. 12 No. 14 No. 15 | No. 9 No. 10 No. 12 No. 14 No. 15 | 25 25 25 20 15 |
| ABM-TRK-5591 | 87 Pcs. Set | 1/4 x 20 5/16 x 18 3/8 x 16 | 6.7 mm 8.3 mm 9.9 mm | No. 9 No. 10 No. 12 | No. 9 No. 10 No. 12 | 25 25 25 |
UNF
| Item Code No. UNF | Set Contains | HSS Helical Tap | HSS Twist Drill-mm | Insertion Tool | Tang Break Off Tool | Inserts Pcs. |
|---|---|---|---|---|---|---|
| ABM-TRK-5600 | 130 Pcs. Set | 1/4 x 28 5/16 x 24 3/8 x 24 7/16 x 20 1/2 x 20 | 6.7 mm 8.3 mm 9.9 mm 11.5 mm 13.0 mm | No. 9 No. 11 No. 13 No. 14 No. 15 | No. 9 No. 11 No. 13 No. 14 No. 15 | 25 25 25 20 15 |
| ABM-TRK-5601 | 87 Pcs. Set | 1/4 x 28 5/16 x 24 3/8 x 24 | 6.7 mm 8.3 mm 9.9 mm | No. 9 No. 11 No. 13 | No. 9 No. 11 No. 13 | 25 25 25 |
BSW
| Item Code No. BSW | Set Contains | HSS Helical Tap | HSS Twist Drill-mm | Insertion Tool | Tang Break Off Tool | Inserts Pcs. |
|---|---|---|---|---|---|---|
| ABM-TRK-5610 | 130 Pcs. Set | 1/4 x 20 5/16 x 18 3/8 x 16 7/16 x 14 1/2 x 12 | 6.7 mm 8.3 mm 9.9 mm 11.5 mm 13.0 mm | No. 9 No. 10 No. 12 No. 14 No. 15 | No. 9 No. 10 No. 12 No. 14 No. 15 | 25 25 25 20 15 |
| ABM-TRK-5611 | 87 Pcs. Set | 1/4 x 20 5/16 x 18 3/8 x 16 | 6.7 mm 8.3 mm 9.9 mm | No. 9 No. 10 No. 12 | No. 9 No. 10 No. 12 | 25 25 25 |
BSF
| Item Code No. BSF | Set Contains | HSS Helical Tap | HSS Twist Drill-mm | Insertion Tool | Tang Break Off Tool | Inserts Pcs. |
|---|---|---|---|---|---|---|
| ABM-TRK-5620 | 130 Pcs. Set | 1/4 x 26 5/16 x 22 3/8 x 20 7/16 x 18 1/2 x 16 | 6.6 mm 8.3 mm 9.9 mm 11.5 mm 13.0 mm | No. 9 No. 11 No. 12 No. 14 No. 15 | No. 9 No. 11 No. 12 No. 14 No. 15 | 25 25 25 20 15 |
| ABM-TRK-5621 | 87 Pcs. Set | 1/4 x 26 5/16 x 22 3/8 x 20 | 6.6 mm 8.3 mm 9.9 mm | No. 9 No. 11 No. 12 | No. 9 No. 11 No. 12 | 25 25 25 |
