Description

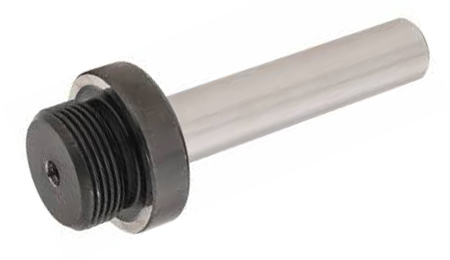

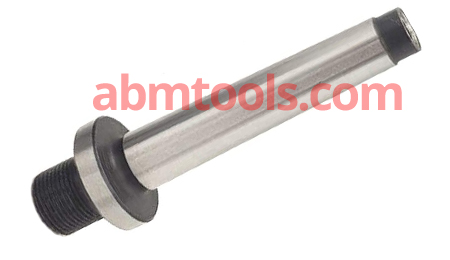

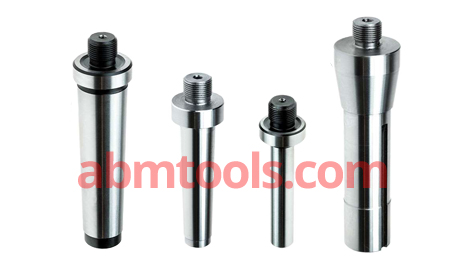

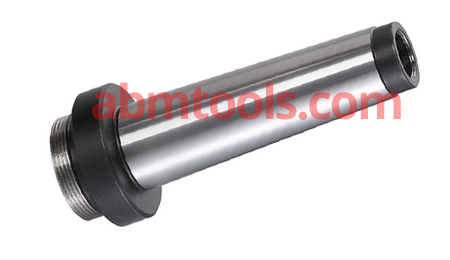

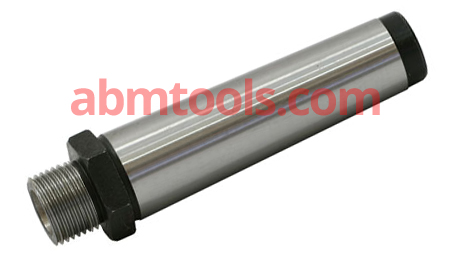

• The boring head shank adapts our boring head to the mini mill with a Morse taper spindle.
• Fits all heads with threaded back. Taper shanks are mounted directly to the machine spindle.
| Metric Item Code No. | Style | Draw Bar | Mounting Thread | Suitable for Boring Head |
|---|---|---|---|---|
| ABM-IMT-4920 | 12 mm | -- | M14 x 1.0 | 30 & 38 mm |
| ABM-IMT-4921 | MT 1 | M6 | M14 x 1.0 | 30 & 38 mm |
| ABM-IMT-4922 | MT 2 | M10 | M14 x 1.0 | 30 & 38 mm |
| ABM-IMT-4923 | MT 3 | M12 | M14 x 1.0 | 30 & 38 mm |
