Description
SET CONTAINS :

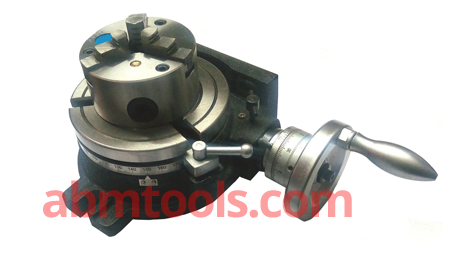

1. Rotary Tables 6″ (150 mm) (Item Code No ABM-VC-2670) – 1 No.
Manufactured from High Grade Seasoned Casting and Powder Coated wrinkled finish for smooth looks
Table Diameter 6″ (150 mm)
Overall Height 3-1/4″ (80 mm)
Center Height in vertical position 105 mm
Center Bore MT-2
Gear Ratio 90 : 1
T Slot 16mm
Horizontal Height approx. 80 mm from Base to Top surface of Chuck
Chrome Dials Graduated 360 degree around its circumference.
Also available in HV8 : 200 mm
2. Backplate – 1 No.
3. Chuck – 1 No.
Self Centering 3 Jaw Chuck 100 mm or 4 Jaw Independent 100mm Chuck
| Item Code No. |
|---|
| ABM-VC-2850 |
