A rotary table is a precision work positioning device used in metalworking. It enables the operator to drill or cut work at exact intervals around a fixed (usually horizontal or vertical) axis. Some rotary tables allow the use of index plates for indexing operations, and some can also be fitted with dividing plates that enable regular work positioning at divisions for which indexing plates are not available.

Loading...

Description

SET  CONTAINS  :

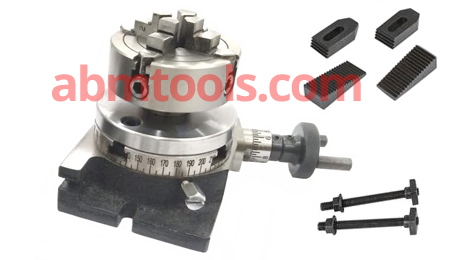

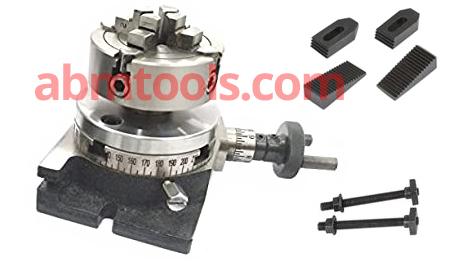

1.   Rotary Tables 4″ (100 mm) (Item Code No  ABM-VC-2540)  – 1  No.
Worm Gear has 36 :1 ratio
The hand wheel is in 10 min divisions and can be set at 0
The table is calibrated in 5º increments around the rim.

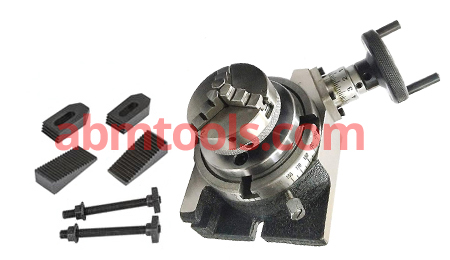

Can be used both Horizontally & Vertically.
2.  Precision Lathe Chuck  – 1  No.
Mounts smoothly over the backplate (provided)
3  Jaw Self Centering 65 mm or 4  Jaw Independent 70mm
3.   Clamping Kit (M6)  – 1  Set.
       2 x Slotted Clamps (40 mm x 20 mm)
2 x 6 mm Studs 50 mm long with nuts
2 x Step Clamps 25 x 15 mm
Suitable Set of T Nuts, Studs and Clamps
4.  Back Plate  – 1 No.



Item Code No.Description
ABM-VC-2800With 3 Jaw Self Centering Chuck 65 mm
ABM-VC-2801With 4 Jaw Independent Chuck 70 mm
