Description

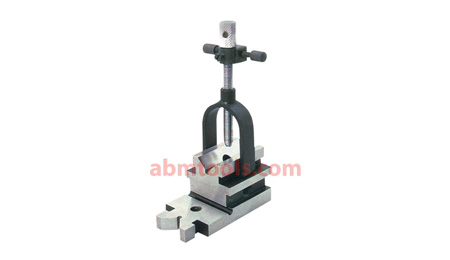

• Ultimate V-Block for Grinding, Milling or Drilling work.
• Made of hardened and Precision ground tool steel.
• The sides are parallel and VEE is central and ground.
• Central Hole is provided for Drilling or removing Pins.
• Clamp is smaller than outside width of the V-Block and has adjustable side screw for support.
• V-Block has four 3-8/16 tapped holes two in the base and one on each side for angle Iron clamping.
• Block is provided with black oxidized clamp.
• Holding Capacity 1-5/16” (33 mm).
• Vee Blocks are capable of being used on base, on end and flat in either sides as the clamp is within the outside width of the Block.
| Clamp Single Item Code No. | Clamps Pair Item Code No. | Length x Width Height Inch | Length x Width Height mm | Clamping Capacity |
|---|---|---|---|---|
| ABM-EPT-8465 | ABM-EPT-8470 | 3-5/8 x 1-7/8 x 1-7/8 | 92 x 48 x 48 | 1-5/16 / 33 mm |
