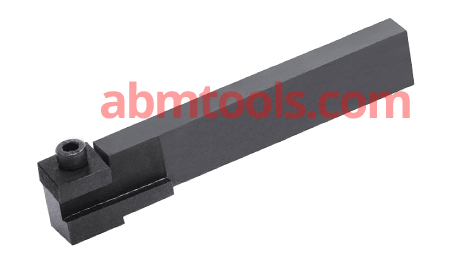

Parting uses a blade-like cutting tool plunged directly into the workpiece to cut off the workpiece at a specific length. It is normally used to remove the finished end of a workpiece from the bar stock that is clamped in the chuck. Other uses include things such as cutting the head off a bolt.

Loading...

Description

• Precision Ground with Black oxidized Surface.
• Suitable for Komet Lathes.



Item Code No.
Only Holder
Item Code No.
Holder With Blade
Item Code No.
Spare Blade
Shank Size
mm
Suitable Blade
mm
ABM-IMT-7960ABM-IMT-7970ABM-IMT-798010 x 10 x 802 x 8 x 70
ABM-IMT-7961ABM-IMT-7971ABM-IMT-798111 x 16 x 1002 x 8 x 80
ABM-IMT-7962ABM-IMT-7972ABM-IMT-798211 x 18 x 1252.5 x 10 x 100
ABM-IMT-7963ABM-IMT-7973ABM-IMT-798313 x 22 x 1353.5 x 12 x 125
