Description

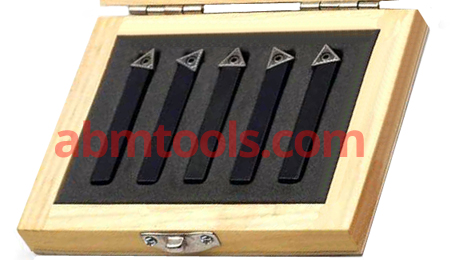

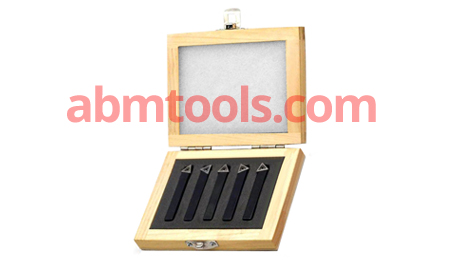

Indexable Carbide Turning Tool Holder (Set of 5 Pcs).
• Versatile of Cutting in any direction.
• Built in Chip Breaker Groove.
• Ready to Use. No Grinding. No Tool Resetting.
• Heat treated and hardened shank
• Economical alternative to Brazed Tool Tip.
• Spare Screws and Allen Keys also available.
• Supplied with and without inserts.

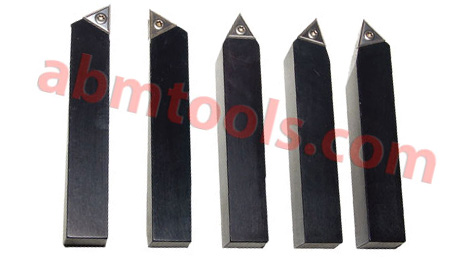

Set Consist of following (5 Pcs Set)
• Style TE: Neutral Threading Tool 60 degree included angle; used for universal threading,
• V-grooving, Chamfering, turning, boring & facing
• Style TBL: Left Hand 15 degree lead angle for rough facing to center or where no shoulder is needed
• Style TAL: Left Hand suitable for facing to a square shoulder
• Style TBR: Right Hand 15 degree lead angle for rough turning where a square shoulder is not needed
| Item Code No. | Size of Square Shank | Insert IC | Style | Overall Length |
|---|---|---|---|---|
| ABM-IMT-6230 | 3/8” | 1/4" | TE-6 | 2-1/2" |
| ABM-IMT-6231 | 3/8” | 1/4" | TBL-6 | 2-1/2" |
| ABM-IMT-6232 | 3/8” | 1/4" | TAL-6 | 2-1/2" |
| ABM-IMT-6233 | 3/8” | 1/4" | TBR-6 | 2-1/2" |
| ABM-IMT-6234 | 3/8” | 1/4" | TAR-6 | 2-1/2" |
| ABM-IMT-6235 | Set of Five Holders with 3/8” shank | |||
| ABM-IMT-6236 | 1/2” | 3/8" | TE-8 | 3-1/2" |
| ABM-IMT-6237 | 1/2” | 3/8" | TBL-8 | 3-1/2" |
| ABM-IMT-6238 | 1/2” | 3/8" | TAL-8 | 3-1/2" |
| ABM-IMT-6239 | 1/2” | 3/8" | TBR-8 | 3-1/2" |
| ABM-IMT-6240 | 1/2” | 3/8" | TAR-8 | 3-1/2" |
| ABM-IMT-6241 | Set of Five Holders with 1/2” shank | |||
| ABM-IMT-6242 | 5/8” | 3/8" | TE-10 | 4" |
| ABM-IMT-6243 | 5/8” | 3/8" | TBL-10 | 4" |
| ABM-IMT-6244 | 5/8” | 3/8" | TAL-10 | 4" |
| ABM-IMT-6245 | 5/8” | 3/8" | TBR-10 | 4" |
| ABM-IMT-6246 | 5/8” | 3/8" | TAR-10 | 4" |
| ABM-IMT-6247 | Set of Five Holders with 5/8” shank | |||
| ABM-IMT-6248 | 3/4” | 3/8" | TE-12 | 4-1/2" |
| ABM-IMT-6249 | 3/4” | 3/8" | TBL-12 | 4-1/2" |
| ABM-IMT-6250 | 3/4” | 3/8" | TAL-12 | 4-1/2" |
| ABM-IMT-6251 | 3/4” | 3/8" | TBR-12 | 4-1/2" |
| ABM-IMT-6252 | 3/4” | 3/8" | TAR-12 | 4-1/2" |
| ABM-IMT-6253 | Set of Five Holders with 3/4” shank | |||
| ABM-IMT-6254 | 1” | 1/2" | TE-16 | 6" |
| ABM-IMT-6255 | 1” | 1/2" | TBL-16 | 6" |
| ABM-IMT-6256 | 1” | 1/2" | TAL-16 | 6" |
| ABM-IMT-6257 | 1” | 1/2" | TBR-16 | 6" |
| ABM-IMT-6258 | 1” | 1/2" | TAR-16 | 6" |
| ABM-IMT-6259 | Set of Five Holders with 1” shank | |||
| ABM-IMT-6259A | Set of Five Holders with 6 mm shank | |||
| ABM-IMT-6259B | Set of Five Holders with 8 mm shank | |||
| ABM-IMT-6259C | Set of Five Holders with 10 mm shank | |||
| ABM-IMT-6259D | Set of Five Holders with 12 mm shank | |||
| ABM-IMT-6259E | Set of Five Holders with 16 mm shank | |||
| ABM-IMT-6259F | Set of Five Holders with 20 mm shank | |||
