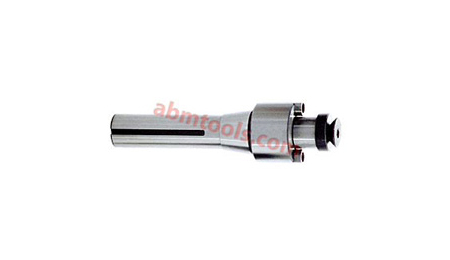

Description
• Manufactured from High Quality Steel.
• Provided with a pilot for easy cutter mounting.
• Useful for holding indexable tip face mills.
• Available in three sizes 16mm, 22mm and 27 mm bore cutters.
| Item Code No. | Shank | Drive Pin Dia. | Spigot Dia x L | Screw | Draw Bar Threaded |
|---|---|---|---|---|---|
| ABM-IMT-3930 | MT2 | 8 x 4 MM | 16 x 16 MM | M8 | 3/8” BSW |
| ABM-IMT-3931 | MT3 | 8 x 4 MM | 16 x 16 MM | M8 | 3/8” BSW |
| ABM-IMT-3932 | MT3 | 10 x 6 MM | 22 x 19 MM | M10 | 3/8” BSW |
| ABM-IMT-3933 | R8 | 8 x 4 MM | 16 x 16 MM | M8 | 7/16” UNF |
| ABM-IMT-3934 | R8 | 10 x 6 MM | 22 x 19 MM | M10 | 7/16” UNF |
| ABM-IMT-3935 | R8 | 12 x 6 MM | 27 x 21 MM | M12 | 7/16” UNF |
