Description

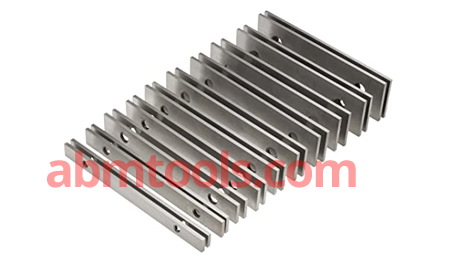

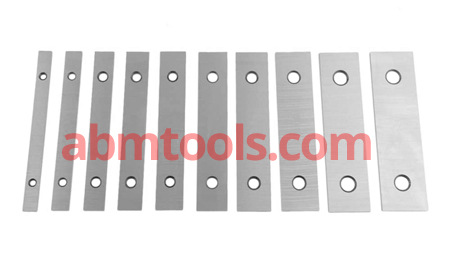

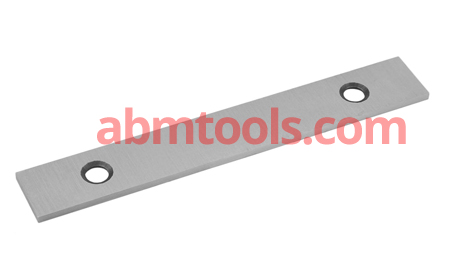

ENGINEER’S STEEL PARALLEL & SETS
• Made from fine quality tool steel, hardened and ground.
• Packed in attractive wooden case.
• Made from EN-31
• Hardness 50 to 58 HRC
• Accuracy 5 – 8 Micron (upto .008 mm)
• Very useful milling & drilling.
• Very useful in tool rooms for inspection, measuring, lathing off & setup jobs..

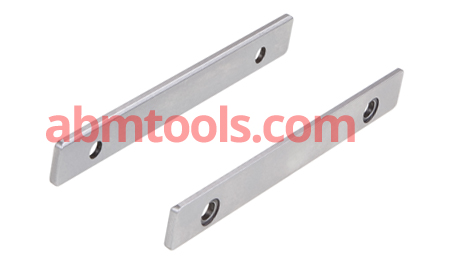

• Supplied in matched pairs
Steel Parallels – Pairs
| Item Code No. | Length Inch | Height Inch | Thickness Inch | No of Pairs |
|---|---|---|---|---|
| ABM-EPT-8280 | 6 | 1/2,5/8,3/4,7/8,1,1-1/8,1-1/4,1-3/8,1-1/2,&1-5/8 | 1/8 | 10 |
| ABM-EPT-8281 | 3 | 1/2,5/8,3/4,7/8,1,1-1/8,1-1/4,1-3/8,1-1/2,&1-5/8 | 1/8 | 10 |
| ABM-EPT-8282 | 6 | 1/2 To 1-11/16, in 1/16 Steps | 1/32 | 20 |
| ABM-EPT-8283 | 1-1/2" | 1/8,5/32,3/16,7/32,1/4,9/32,1/4,9/32,5/16,11/32&3/8 | 1/16 | 9 |
| ABM-EPT-8284 | 4 | 1/2,5/8,3/4,7/8,1,1-1/8,1-1/4,1-3/8,1-1/2,&1-5/8 | 1/8 | 10 |
| ABM-EPT-8285 | 5 | 1/2,5/8,3/4,7/8,1,1-1/8,1-1/4,1-3/8,1-1/2,&1-5/8 | 1/8 | 10 |
