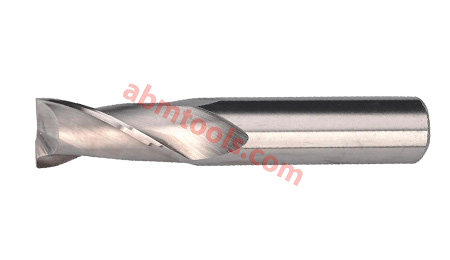

An end mill is a type of milling cutter, a cutting tool used in industrial milling applications. End mills are used in milling applications such as profile milling, tracer milling, face milling, and plunging.

Loading...

Description

End Mill Cutter – Single – Ended Multiple Flutes  – 4, 6 & 8 Flutes
•  Drill bit can cut in only axial direction, a milling bit can cut generally in all the directions though some cannot cut axially.
•  End Mill cutters cut material on both the periphery and end simultaneously creating stress since the tool is held only at the spindle.
•  Milling bit are used in Milling applications such as profile milling, tracer milling, face milling ,plunging.
•  With Centre Cutting and without Centre Cutting.

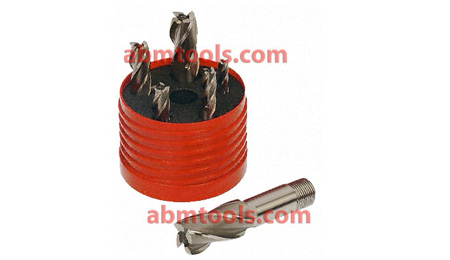

•  Threaded End Mills Also available.
•  COBALT  STEEL  are suitable for use on tougher materials and all heavy duty applications that require an increased depth of cut. Addition of cobalt gives optimum hardness and toughness thus improving the cutting performance.
•  HIGH SPEED STEEL show exceptional results on mild steel, alloy steels and tool steel and are superior finishing tools useful in production processes.
•  Also available in odd Lengths and mm sizes.

Available in following Materials
(a)   HIGH SPEED STEEL   (HSS)
(1)  M2  Quality    (Single H)

(b)   COBALT STEEL
(1)  M-35  Quality   (5% Cobalt)  (Double H)
(2)  M42 Quality (8% Cobalt) (Triple H)



End Mill  Cutter – Multiple Flutes  – 4, 6 & 8 Flutes

Multiple Flutes
Item code No.
SizeShank  DiaFlute  LengthOverall LengthNo of Flutes
ABM-CT-136801/8”3/8”3/8”2-5/16”4
ABM-CT-136813/16”3/8”1/2”2-3/8”4
ABM-CT-136821/4”3/8”5/8”2-7/16”4
ABM-CT-136835/16”3/8”3/4”2-1/2”4
ABM-CT-136843/8”3/8”3/4”2-1/2”4
ABM-CT-136857/16”3/8”1”2-11/16”4
ABM-CT-136861/2”3/8”1”2-11/16”4
ABM-CT-136871/2”1/2”1-1/4”3-1/4”4
ABM-CT-136889/16”1/2”1-3/8”3-3/8”4
ABM-CT-136895/8”1/2”1-3/8”3-3/8”4
ABM-CT-136905/8”5/8”1-5/8”3-3/4”4
ABM-CT-1369111/16”1/2”1-5/8”3-5/8”4
ABM-CT-1369211/16”5/8”1-5/8”3-3/4”4
ABM-CT-136933/4”1/2”1-5/8”3-5/8”4
ABM-CT-136943/4”5/8”1-5/8”3-3/4”4
ABM-CT-136953/4”3/4”1-5/8”3-7/8”4
ABM-CT-1369613/16”3/4”1-7/8”4”4
ABM-CT-136977/8”5/8”1-7/8”4”6
ABM-CT-136987/8”3/4”1-7/8”4”6
ABM-CT-136997/8”7/8”1-7/8”4”6
ABM-CT-1370015/16”3/4”1-7/8”4”6
ABM-CT-137011”1/2”1-7/8”4”6
ABM-CT-137021”5/8”1-7/8”4”6
ABM-CT-137031”3/4”1-7/8”4-1/8”6
ABM-CT-137041”3/4”1-7/8”4-1/8”6
ABM-CT-137051”1”2”4-1/2”6
ABM-CT-137061-1/16”3/4”2”4-1/4”6
ABM-CT-137071-1/8”3/4”2”4-1/4”6
ABM-CT-137081-3/16”3/4”2”4-1/4”6
ABM-CT-137091-1/4”3/4”2”4-1/4”6
ABM-CT-137601-1/4”1”2”4-1/2”6
ABM-CT-137611-1/4”1-1/4”2”4-1/2”6
ABM-CT-137621-5/16”3/4”2”3-7/2”6
ABM-CT-137631-3/8”3/4”2”4-1/2”6
ABM-CT-137641-3/8”1”2”4-1/2”6
ABM-CT-137651-7/16”3/4”2”4-1/2”6
ABM-CT-137661-1/2”3/4”2”4-1/2”6
ABM-CT-137671-1/2”1”2”4-1/2”6
ABM-CT-137681-1/2”1-1/4”2”4-1/2”6
ABM-CT-137691-5/8”3/4”2”4-1/2”6
ABM-CT-137701-5/8”1-1/4”2”4-1/2”6
ABM-CT-137711-3/4”3/4”2”4-1/2”6
ABM-CT-137721-3/4”1-1/4”2”4-1/2”6
ABM-CT-137731-7/8”1-1/4”2”4-1/2”6
ABM-CT-137742”3/4”2”4-1/2”8
While placing order Please mention Material M2, M35 and M42.
Also mention with or without Centre Cutting
