Description

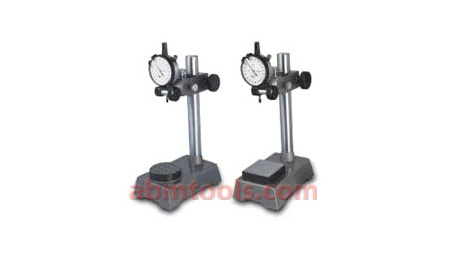

• Compact and Versatile Comparator Stand.
• Rugged Enameled Cast Iron base.
• Rust Proof chrome plated Pillar at right angle to the base.
• Hardened and Precise ground Anvil.
• Provided with fine Adjustment Knob for Zero Setting.
• Suitable for all dial gages including 3/8” and 5/16” dia stem.
• Base Dimension : 6”x 4” (150 x 100mm).
• Pillar diameter : 1” (25.4 mm).
• Supplied without Dial Gage.
• Fine Adjustments : 1/8″ (3 mm).
| Item Code No. | Description | Anvil Size Inch | Anvil Size mm | Throat Depth Inch | Throat Depth mm | Measuring Range Inch | Measuring Range mm |
|---|---|---|---|---|---|---|---|
| ABM-EPT-8600 | Round Serrated | 2-3/8 | 60 | 3 | 75 | 5 | 125 |
| ABM-EPT-8601 | Round Flat | 2-3/8 | 60 | 3 | 75 | 5 | 125 |
| ABM-EPT-8602 | Square Flat | 2-3/8 | 60 | 3 | 75 | 5 | 125 |
| ABM-EPT-8603 | Square Serrated | 2-3/8 | 60 | 3 | 75 | 5 | 125 |
| ABM-EPT-8604 | Round Serrated | 2-3/8 | 60 | 3 | 75 | 11 | 280 |
| ABM-EPT-8605 | Round Flat | 2-3/8 | 60 | 3 | 75 | 11 | 280 |
| ABM-EPT-8606 | Square Flat | 2-3/8 | 60 | 3 | 75 | 11 | 280 |
| ABM-EPT-8607 | Square Serrated | 2-3/8 | 60 | 3 | 75 | 11 | 280 |
