Description

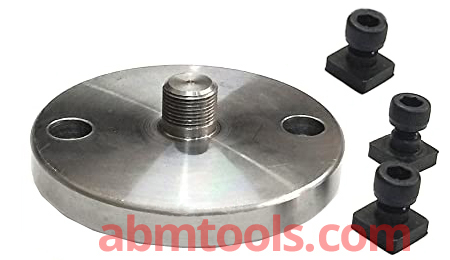

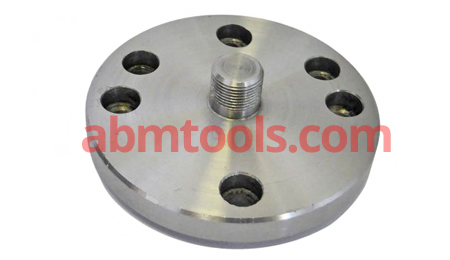

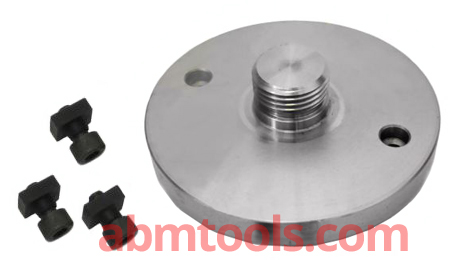

Back plates with T Nuts
• Excellent quality back plates to mount chucks on the Rotary tables.
• Manufactured from tool Steel & ground finished.
• Drilled in a manner that they fit both a 3 as well as 4 slot tables.
• In case of MT taper bore Rotary tables, the back plates are provided with an extension to fit to the centre bore so that the centre of the Table and back plate remains absolute co-centric.
• Precision Turned Backplates which allow Chuck to sit Precisely.
• Supplied with Suitable T Nuts & Washers.
| Item Code No. | Plate Size | Plate Size | Suitable for following Models Rotary Tables |
|---|---|---|---|
| ABM-VC-2209 | 55 mm | 2-1/4 | Suitable for 75 mm & 100 mm Rotary Tables |
| ABM-VC-2210 | 65 mm | 2-1/2 | Suitable for 75 mm & 100 mm Rotary Tables |
| ABM-VC-2211 | 80 mm | 3-1/4 | Suitable for 100 mm & 125 mm Rotary Tables |
| ABM-VC-2212 | 100 mm | 4" | Suitable for HV4 Rotary Tables |
| ABM-VC-2213 | 125 mm | 5" | Suitable for HV4 / HV 5 Rotary Tables |
| ABM-VC-2214 | 150 mm | 6" | Suitable for HV6 Rotary Tables |
