Description
V ANGLE PLATE / VEE BLOCK

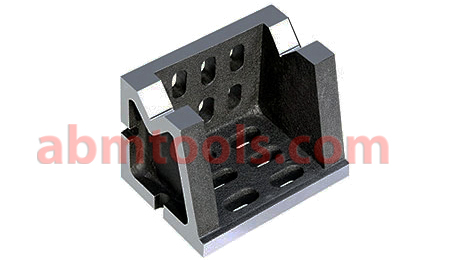

Combined V Block & Angle Plate
• As the name rightly suggests it has dual usage as a vee block and an angle plate.
• Having a single piece close grained cast iron construction, which ensures rigidity.
• Casting are stress relieved.
• Useful for easy operations in set up jobs.
• Combined V Block & Angle Plate.
• Manufactured from good quality seasoned casting.
• The angle block is precision ground and has a parallelism of + 0.005” (0.012 mm) and a squareness of + 0.005” (0.012 mm).

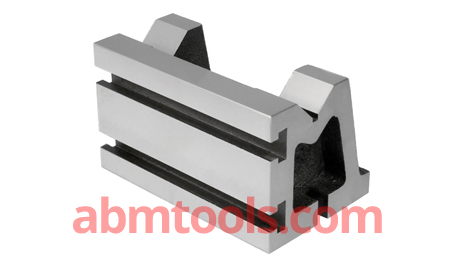

• Available in Vee Angle Plate-Tee Slotted and Vee Angle Plate – Slotted
| Item Code No. Slotted | Item Code No. Tee Slotted | Size Inches l x w x h | Size mm l x w x h |
|---|---|---|---|
| ABM-EPT-8824 | ABM-EPT-8830 | 3” x 3" x 5" | 75 x 75 x 125 |
| ABM-EPT-8825 | ABM-EPT-8831 | 4” x 4" x 6" | 100 x 100 x 150 |
| ABM-EPT-8826 | ABM-EPT-8832 | 5” x 5" x 7" | 125 x 125 x 175 |
| ABM-EPT-8827 | ABM-EPT-8833 | 6” x 6" x 8" | 150 x 150 x 200 |
