V-Blocks are precision metalworking jigs typically used to hold round metal rods or pipes for performing drilling or milling operations. They consist of a rectangular steel or cast iron block.

Loading...

Description

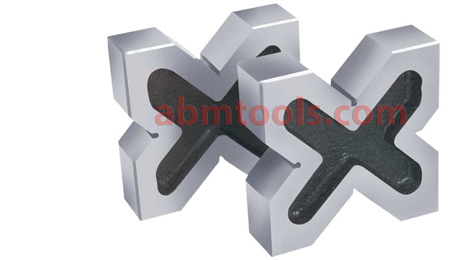

FOUR WAY VEE BLOCKS

• Made from seasoned closed grained cast Iron.
• Universal V-Block consisting of Four different size grooves.
• Supplied in Pairs.
• Very useful tool for laying out round work & holding it for machining.
• Each block incorporates 4 different sized V’s, therefore support wide range of jobs.



Item Code No.Length
Inch
Length
mm
Height
Inch
Height
mm
Thickness of
Each Block Inch
Thickness of
Each Block mm
Width of
Vee Inch
Width of
Vee mm
ABM-EPT-83703-3/4952-3/4701-3/8353/4 x 1-3/16 x 1-9/16 x 220 x 30 x 40 x 50
ABM-EPT-8371410041001-3/16303/4 x 1-3/16 x 1-9/16 x 220 x 30 x 40 x 50
ABM-EPT-83724-3/41204-3/41201-3/8351-3/16 x 1-9/16 x 2 x 2-3/830 x 40 x 50 x 60
ABM-EPT-83734-3/41204-3/41202-3/8601-3/16 x 1-9/16 x 2 x 2-3/830 x 40 x 50 x 60
ABM-EPT-8374615061503751-9/16 x 2 x 2-3/8 x 2-3/440 x 50 x 60 x 70
ABM-EPT-83758200820041002-3/8 x 2-3/4 x 3-5/3 x 460 x 70 x 80 x 100
