Description

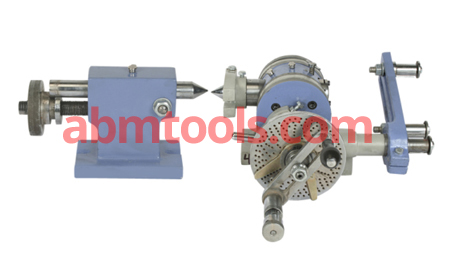

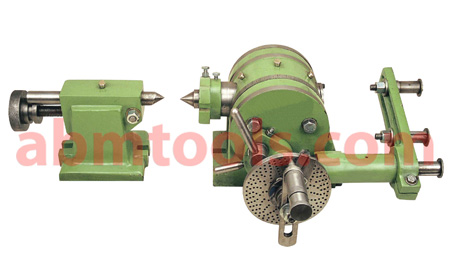

• Universal Dividing Heads for Tool Room and Production applications.
• Work piece can be circularly indexed and precisely rotated to preset angles or circular divisions.
• The manual indexed (hand crank) head operates at ratio 40:1; i.e. 1 spindle revolution of 9 degrees per 40 crank turns.
• This allows your operator to accurately position the workpiece to any angle with an indexing plate.
• It is suitable for indirect as well as differential indexing.
• Complete with Gear Head.
| Item Code No. | Size Inches |
|---|---|
| ABM-VC-11340 | 4-1/2” |
| ABM-VC-11341 | 5-1/2” |
| ABM-VC-11342 | 6-1/2” |
| ABM-VC-11343 | 7-1/2” |
