V-Blocks are precision metalworking jigs typically used to hold round metal rods or pipes for performing drilling or milling operations. They consist of a rectangular steel or cast iron block.

Loading...

Description

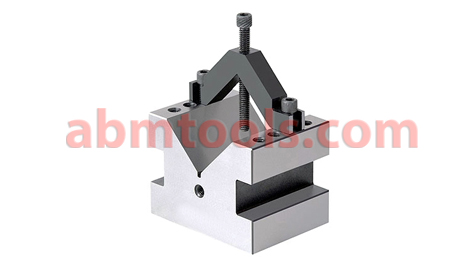

VERSATILE  VEE  BLOCK  WITH  CLAMPS

• This Vee block is having a very large capacity which is ideal for toolroom production and  inspection jobs.
• Made of hardened steel, they are precision ground flat, square and parallel to within .002” over 1”.
• It can be used on its sides as well as on the ends.
• The clamp does not interface with the work when the block is used sideways.
• The style of the clamp is such that it can be reversed to provide true tangential  contact on cylindrical work.
• Tapped holes on the end of the Vee are useful for mounting the Vee Blocks perpendicular to the face plates.
• They are also available as matched pairs, with 2 clamps.
• Can be used either from side, center or the end.



Item Code No.TypeOverall Length
Inch
Overall Length
mm
Overall Width
Inch
Overall width
mm
Overall Height
Inch
Overall Height
mm
Clamping Capacity
Inch
Clamping Capacity
mm
ABM-EPT-8390Single Piece2-1/2632-1/2632501-5/841
ABM-EPT-8391Pair2-1/2632-1/2632501-5/841
ABM-EPT-8392Single Piece41003753752-1/457
ABM-EPT-8393Pair41003753752-1/45
