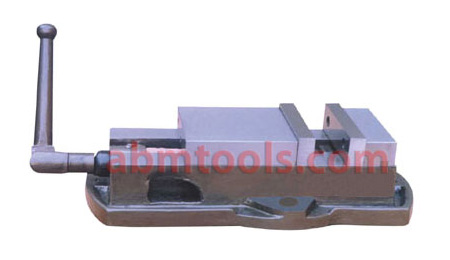

Tilt Lock Machine Vice with Positive Locking is able to set up at any angle with positive locking. Tilt Lock Machine Vice with Positive Locking has grey cast iron made body.

Loading...

Description

• Tilt Lock Vices can with stand heavy jobs.
• Top & Bottom of vice bed, bottom & both sides of jaws & all jaw mounting surfaces are precision ground.
• By reversing the jaw plates the jaws are raised & can be fitted to both ends of the fixed jaws & the moveable jaws.
• The four different positions of jaw plates pair are available for more gripping area.
• Coolant through on vise body and swivel base.
• Chip clearance holes,  no dead pockets.
• The vice can be disassembled and repaired by regrinding.
• Rigid Material Vise Body of Ductile Iron.
• Fitted with Thrust Bearing for Smooth Movement.
• Tilt Lock Vices can with stand heavy jobs.
• Supplied with Stopper for Fast Production.



Item Code No.Size InchSize mmJaw Opening mm
ABM-VC-113104”100150
ABM-VC-113115”125125
ABM-VC-113126”150150
ABM-VC-113136”150200
ABM-VC-113148”200200
ABM-VC-113158"200250
ABM-VC-113168”200300

Categories

MADE TO ORDER

CUSTOM DESIGN TOOLS
CUSTOMER’S BRANDING
DESIRED PACKING
GLOBAL SPEEDY DELIVERY

RELATED PRODUCTS

Tilt Lock Down Self Centering Vice
Tilt Lock Down Self Centering Vice
This vice can be clamped vertical or either  side
Precision Tilt Lock Hydraulic Vice
Precision Tilt Lock Hydraulic Vice
The Hydraulic Machine Vice is ideal for heavy and controlled clamping...

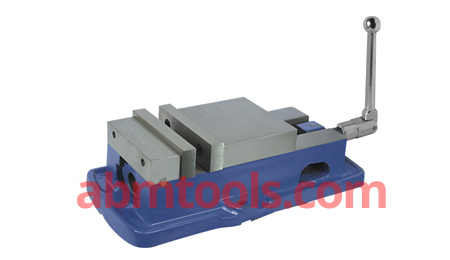

Tilt Lock Down Machine Vice - Kurt Type - Fixed Base - Precision
