Description
• Center drills are used to produce a center hole on a components or workpiece for turning /matching between centers .
• They provide a location for a (live, dead, or driven) center to locate the part about an axis. countersinking is done using a countersink drill bit .
• Countersinking involves enlarging the rim of a pilot hole.
• Countersinking is especially necessary when working with hardwoods.
• You should only need to countersink a hole when working with countersink screws.
• Counter sinking a pilot hole allows a countersunk screw to sit flush with the surface of material, giving your work neat finish.
• Designed for machine use and light, portable work.
• Ideal for chamfering, Deburring and Counter sinking.

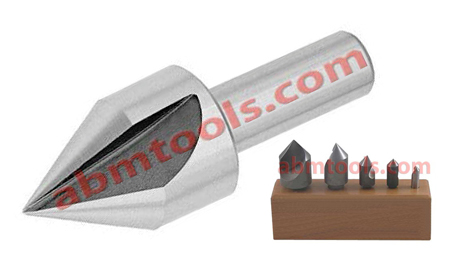

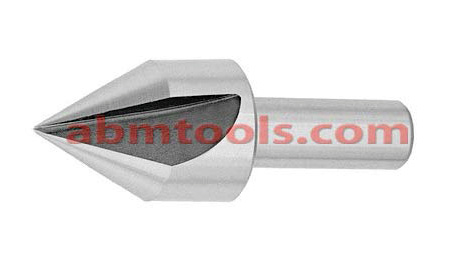

• Single flute construction and low controlled relief provide chatterless operation and smooth surface finish.
• Versatility of this tool should increase productivity on all general purpose applications.
• Made from High Speed Steel.
• Available in 60º, 82º, 90º and 100º Degree.
| Item code No. | Size. | Shank Dia. | Overall Length |
|---|---|---|---|
| ABM-CT-12426 | 3/16” | 3/16” | 1-1/2” |
| ABM-CT-12427 | 1/4” | 1/4” | 2” |
| ABM-CT-12428 | 5/16” | 1/4” | 2” |
| ABM-CT-12429 | 3/8” | 1/4” | 2” |
| ABM-CT-12430 | 1/2” | 1/4” | 2” |
| ABM-CT-12431 | 5/8” | 1/2” | 2-1/4” |
| ABM-CT-12432 | 3/4” | 1/2” | 2-3/4” |
| ABM-CT-12433 | 7/8” | 1/2” | 2-3/4” |
| ABM-CT-12434 | 1” | 1/2” | 2-3/4” |
| ABM-CT-12435 | 1-1/4” | 3/4” | 3” |
| ABM-CT-12436 | 1-1/2” | 3/4” | 3-3/8” |
| ABM-CT-12437 | 2” | 3/4” | 3-3/4” |
| Please mention 60º or 82º or 90º or 100º Degree while placing order | |||
SETS
| Item Code No. Sets | Range | No of Pcs. | Description |
|---|---|---|---|
| ABM-CT-12438 | 1/4, 3/8 & 1/2" | 3 | Plastic pouch |

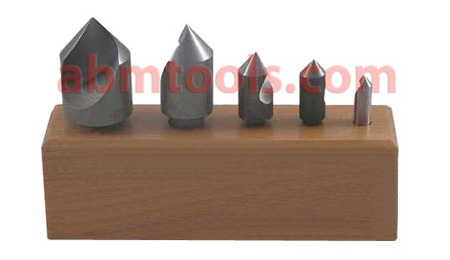

| ABM-CT-12439 | 1/4, 3/8, 1/2, 3/4 & 1" | 5 | Wooden Stand |
| ABM-CT-12440 | 3/16, 1/4, 5/16, 3/8, 1/2, 5/8, 3/4, 7/8 & 1" | 9 | Wooden Stand |
| ABM-CT-12441 | 3/16, 1/4, 5/16, 3/8, 1/2, 5/8, 3/4, 7/8, 1, 1-1/4, 1-1/2 & 2" | 12 | Wooden Stand |
| Please mention 60º or 82º or 90º Degree while placing order | |||
