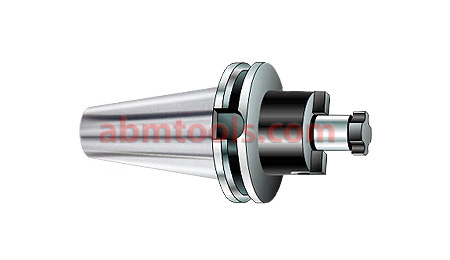

Description
Dimension in mm
| Item Code No. | Type | D | D1 | L | L1 | G | G1 |
|---|---|---|---|---|---|---|---|
| ABM-IMT-7100 | BT 30 / SMS 16 x 030 | 16 | 32 | 30 | 14 | M 12 | M 8 |
| ABM-IMT-7101 | BT 30 / SMS 22 x 030 | 22 | 40 | 30 | 16 | M 12 | M 10 |
| ABM-IMT-7102 | BT 40 / SMS 16 x 060 | 16 | 32 | 60 | 14 | M 16 | M 8 |
| ABM-IMT-7103 | BT 40 / SMS 16 x 120 | 16 | 32 | 120 | 14 | M 16 | M 8 |
| ABM-IMT-7104 | BT 40 / SMS 22 x 060 | 22 | 40 | 60 | 16 | M 16 | M 10 |
| ABM-IMT-7105 | BT 40 / SMS 22 x 120 | 22 | 40 | 120 | 16 | M 16 | M 10 |
| ABM-IMT-7106 | BT 40 / SMS 27 x 045 | 27 | 48 | 45 | 18 | M 16 | M 12 |
| ABM-IMT-7107 | BT 40 / SMS 27 x 105 | 27 | 48 | 105 | 18 | M 16 | M 12 |
| ABM-IMT-7108 | BT 40 / SMS 32 x 045 | 32 | 58 | 45 | 20 | M 16 | M 16 |
| ABM-IMT-7109 | BT 40 / SMS 32 x 075 | 32 | 58 | 75 | 20 | M 16 | M 16 |
| ABM-IMT-7110 | BT 50 / SMS 16 x 075 | 16 | 32 | 75 | 14 | M 24 | M 8 |
| ABM-IMT-7111 | BT 50 / SMS 16 x 120 | 16 | 32 | 120 | 14 | M 24 | M 8 |
| ABM-IMT-7112 | BT 50 / SMS 22 x 075 | 22 | 40 | 75 | 16 | M 24 | M 10 |
| ABM-IMT-7113 | BT 50 / SMS 22 x 120 | 22 | 40 | 120 | 16 | M 24 | M 10 |
| ABM-IMT-7114 | BT 50 / SMS 27 x 060 | 27 | 48 | 60 | 18 | M 24 | M 12 |
| ABM-IMT-7115 | BT 50 / SMS 27 x 105 | 27 | 48 | 105 | 18 | M 24 | M 12 |
| ABM-IMT-7116 | BT 50 / SMS 32 x 045 | 32 | 58 | 45 | 20 | M 24 | M 16 |
| ABM-IMT-7117 | BT 50 / SMS 32 x 075 | 32 | 58 | 75 | 20 | M 24 | M 16 |
| ABM-IMT-7118 | BT 50 / SMS 40 x 045 | 40 | 70 | 45 | 23 | M 24 | M 20 |
| ABM-IMT-7119 | BT 50 / SMS 40 x 075 | 40 | 70 | 75 | 23 | M 24 | M 20 |
| ABM-IMT-7120 | BT 50 / SMS 50 x 060 | 50 | 90 | 60 | 26 | M 24 | M 24 |
