Description

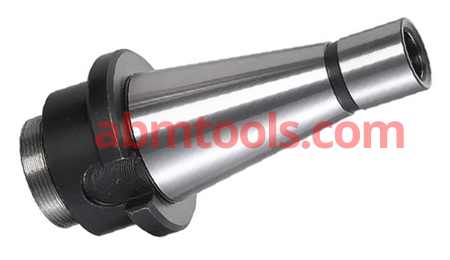

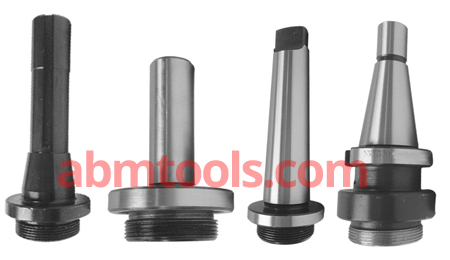

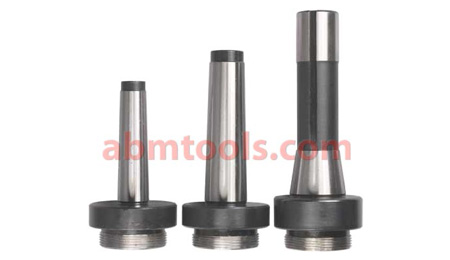

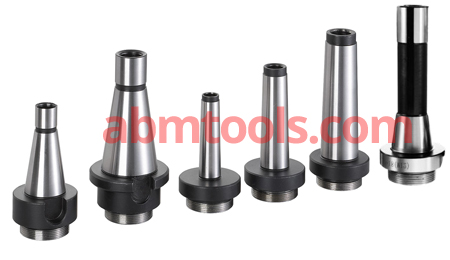

• The boring head shank adapts our boring head to the mini mill with a Morse taper spindle.
• Fits all heads with threaded back. Taper shanks are mounted directly to the machine spindle.
METRIC

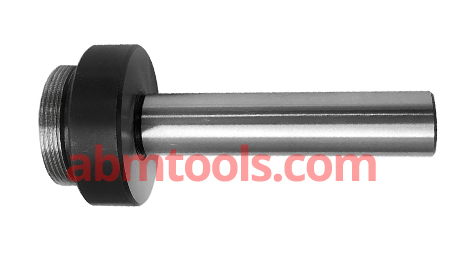

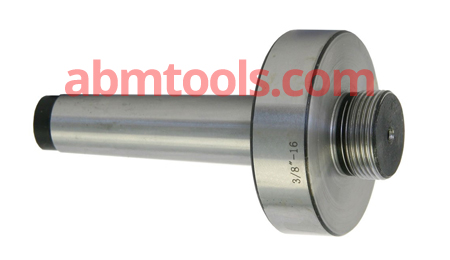

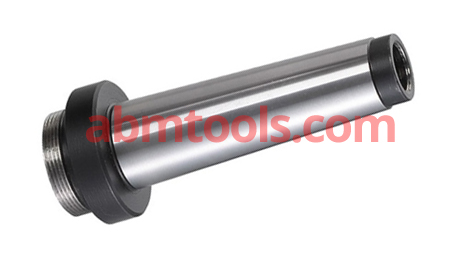

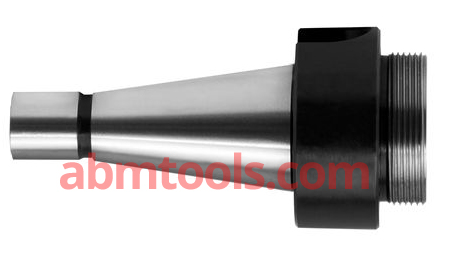

| Metric Item Code No. | Style | Draw Bar | Mounting Thread | Suitable for Boring Head |
|---|---|---|---|---|
| ABM-IMT-4830 | 12 mm | -- | M14 x 1.0 | 30 & 38 mm |
| ABM-IMT-4831 | MT 1 | M6 | M14 x 1.0 | 30 & 38 mm |
| ABM-IMT-4832 | MT 2 | M10 | M14 x 1.0 | 30 & 38 mm |
| ABM-IMT-4833 | MT 3 | M12 | M14 x 1.0 | 30 & 38 mm |
| ABM-IMT-4834 | MT 1 | M6 | 1-1/2 x 18 TPI | 50 / 75 / 100 mm |
| ABM-IMT-4835 | MT 2 | M10 | 1-1/2 x 18 TPI | 50 / 75 / 100 mm |
| ABM-IMT-4836 | MT 3 | M12 | 1-1/2 x 18 TPI | 50 / 75 / 100 mm |
| ABM-IMT-4837 | MT 4 | M16 | 1-1/2 x 18 TPI | 50 / 75 / 100 mm |
| ABM-IMT-4838 | ISO 30 | M12 | 1-1/2 x 18 TPI | 50 / 75 / 100 mm |
| ABM-IMT-4839 | ISO 40 | M16 | 1-1/2 x 18 TPI | 50 / 75 / 100 mm |
| ABM-IMT-4840 | ISO 50 | M24 | 1-1/2 x 18 TPI | 50 / 75 / 100 mm |
| ABM-IMT-4841 | BT 30 | M12 | 1-1/2 x 18 TPI | 50 / 75 / 100 mm |
| ABM-IMT-4842 | BT 40 | M16 | 1-1/2 x 18 TPI | 50 / 75 / 100 mm |
| ABM-IMT-4843 | BT 50 | M24 | 1-1/2 x 18 TPI | 50 / 75 / 100 mm |
IMPERIAL
| Imperial Item Code No. | Style | Draw Bar | Mounting Thread | Suitable for Boring Head |
|---|---|---|---|---|

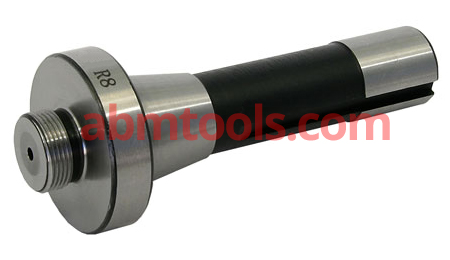

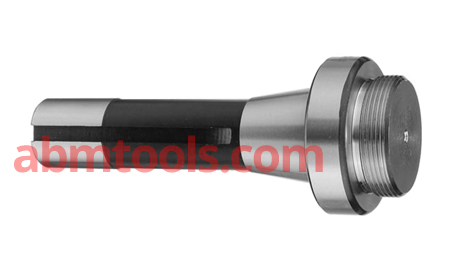

| ABM-IMT-4845 | R8 | 7/16" UNF | 7/8" UNF | 2 / 3 / 4" |
| ABM-IMT-4846 | MT 2 | 3/8" BSW | 7/8" UNF | 2 / 3 / 4" |
| ABM-IMT-4847 | MT 3 | 1/2" BSW | 7/8" UNF | 2 / 3 / 4" |
| ABM-IMT-4848 | R8 | 7/16" UNF | 1-1/2 x 18 TPI | 2 / 3 / 4" |
| ABM-IMT-4849 | MT 2 | 3/8" BSW | 1-1/2 x 18 TPI | 2 / 3 / 4" |
| ABM-IMT-4850 | MT 3 | 1/2" BSW | 1-1/2 x 18 TPI | 2 / 3 / 4" |
| ABM-IMT-4851 | MT 4 | 5/8" BSW | 1-1/2 x 18 TPI | 2 / 3 / 4" |
