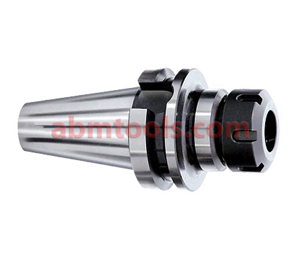

Suitable for Conventional & CNC milling machines with DRAW BAR

The shank is the cylindrical (non-fluted) part of the tool which is used to hold and locate it in the tool holder. A shank may be perfectly round, and held by friction, or it may have a Weldon Flat, where a set screw, also known as a grub screw, makes contact for increased torque without the tool slipping. The diameter may be different from the diameter of the cutting part of the tool, so that it can be held by a standard tool holder.



Loading...

Description

shank type 1

Shank Type

• MAS 403.
Dimension in mm

Item Code No.TypeDD1 h8D2  + 0.005G 6HMeasuring Pin dL1  +  0.2L2  +  0.1
ABM-IMT-6746BT 30Ø31.75Ø4654.14M12Ø848.413.6
ABM-IMT-6747BT 40Ø44.45Ø6375.67M16Ø1065.4016.60
ABM-IMT-6748BT 45Ø57.15Ø85100.21M20Ø1282.821.2
ABM-IMT-6749BT 50Ø69.85Ø100119.02M24Ø15101.823.2



shank type 2

• DIN 69871 / ISO 7388.
• DIN 69871 – Form B for coolant holes through flange.
• DIN 69871 – Form A without coolant holes through flange.
• TC is also called as SK.
• TC type can be used in place of CAT and ANSI.

Dimension in mm

Item Code No.TypeDD1 0.1D2  + 0.005D3 MaxG 6HMeasuring Pin dL1  +  0.3L2  +  0.1L3 Min
ABM-IMT-6770TC 30Ø31.75Ø50.0059.3M12M12--47.8----
ABM-IMT-6771TC 40Ø44.45Ø63.5572.3M16M16Ø768.4011.135
ABM-IMT-6772TC 45Ø57.15Ø82.5591.35M20M20--82.7----
ABM-IMT-6773TC 50Ø69.85Ø97.50107.25M24M24--101.75----



shank type 2
shank type 2

• DIN 2080 / ISO 40.
• Universal type Suitable for Conventional & CNC milling machines with DRAW BAR.
• CNC milling machines like Deckel Mikcron, Maho fitted with hydraulic clamping arrangement.
ITEM CODE NO ABM-IMT-6780

Categories

MADE TO ORDER

CUSTOM DESIGN TOOLS
CUSTOMER’S BRANDING
DESIRED PACKING
GLOBAL SPEEDY DELIVERY
