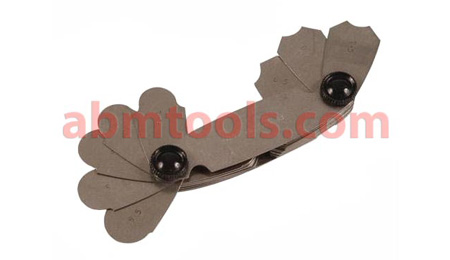

A radius gauge, also known as a fillet gauge, is a tool used to measure the radius of an object.  The gauge is placed against the edge to be checked and any light leakage between the blade and edge indicates a mismatch that requires correction. Radius gauges require a bright light behind the object to be measured.



Loading...

Description

• Handy device for checking radius of tools and dies easier and faster.
• Gauge features leaves for measuring both concave & convex radius.
• Each leaf is clearly stamped with the radius size.



Item Code No.RangeNumber of leaves
ABM-EPT-93701/32 to 1/4 by 1/6434
ABM-EPT-937117/64 to 1/2 by 1/64  32
ABM-EPT-93721 to 7 mm34
ABM-EPT-93737.5 to 15 mm32
ABM-EPT-937415.5 to 25 mm30
ABM-EPT-93750.75 to 5 by 0.25 mm   18
ABM-EPT-93765.5 to 13  by 0.5 mm 16
