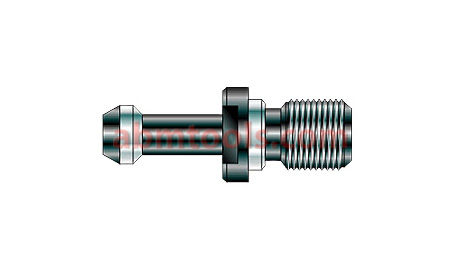

Description
Dimension in mm
| Item Code No. | Suitable for Tool Shank MAS 403 BT | D | D1 | D2 | D3 | L | L1 | L2 | L3 | L4 | G | Ø° | ØA |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ABM-IMT-7570 | B 40 | 19 | 23 | 17 | 14 | 54 | 26 | 4 | 20 | 7 | M 16 | 75 | -- |
| ABM-IMT-7571 | B 45 | 23 | 30 | 21 | 17 | 65 | 30 | 5 | 23 | 8 | M 20 | 75 | -- |
| ABM-IMT-7572 | B 50 | 28 | 36 | 25 | 21 | 74 | 34 | 5 | 25 | 10 | M 24 | 75 | -- |
| ABM-IMT-7573 | A 40 | 19 | 23 | 17 | 14 | 54 | 26 | 4 | 20 | 7 | M 16 | 75 | 7 |
| ABM-IMT-7574 | A 45 | 23 | 30 | 21 | 17 | 65 | 30 | 5 | 23 | 8 | M 20 | 75 | 9.5 |
| ABM-IMT-7575 | A 50 | 28 | 36 | 25 | 21 | 74 | 34 | 5 | 25 | 10 | M 24 | 75 | 11.5 |
