Description

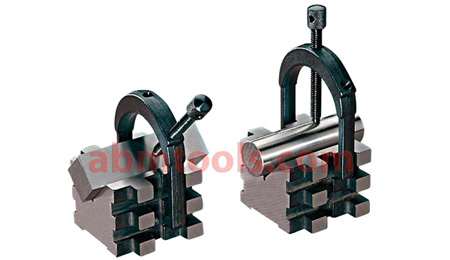

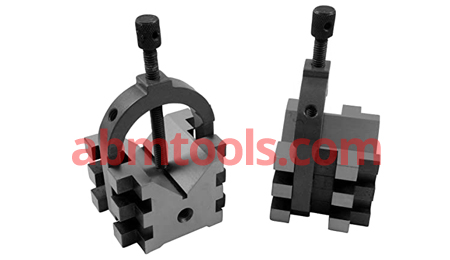

Vee Block Stepped Groove
• Multi-Use : Holds both Square and Round Work.
• Stepped Groove Construction permits both Low and High Clamping.
• Side Hole-Provided in each block to facilitate clamping.
• Made of Hardened Tool Steel, Machined and Ground in Pairs.
• All Sides Precision Ground Parallel and Square to an accuracy of 0.0003”.
• Set Consists of Two V-Blocks and Two Clamps.
• Capacity : 2” (50 mm) Round and 1-7/16” (36.5 mm) Square.
| Item Code No. | Length x Width Height Inch | Length x Width Height mm |
|---|---|---|
| ABM-EPT-8460 | 2-3/8 x 2-3/4 x 2 | 60 x 70 x 50 |
