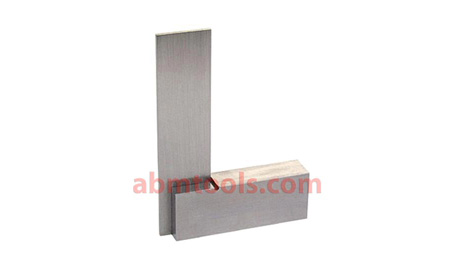

Precision Steel square is a tool that Engineer’s use. They use many tools to lay out a “square” or right-angle,  made of steel, but the title steel square refers to a specific long-armed square that has additional uses for measurement, especially of angles, as well as simple right-angles.

Compare

Product Description

• Available in ‘A’ Grade & ‘Workshop’ Grade.
• Made of finest quality ground steel with heavy thick stock.
• Blade is hardened and ground for straightness and parallelism.
• Squares are accurate both inside and outside.

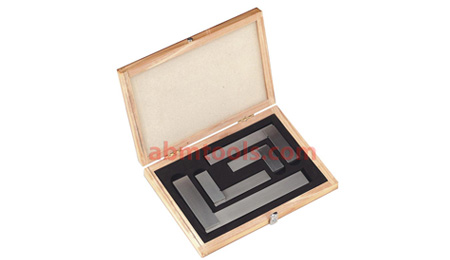

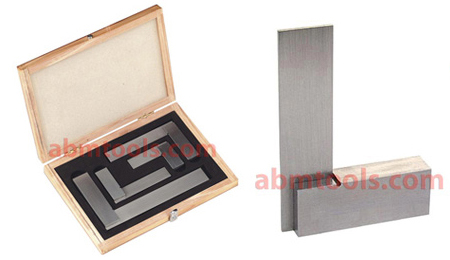

• Sizes 18” (450 mm) and above are supplied in finished wooden  box.
• Effective Blade length measured from inner edge of the beam of  the blade and is  approximately 1/4” (6 mm) more than sizes  shown.
• Available in DIN 875/II , 875/I or BS939B.



Item Code No.Diameter
Inch
Diameter
mm
Thickness
Inch
Thickness
mm
ABM-EPT-85701251-1/238
ABM-EPT-8571250250
ABM-EPT-85723752-1/263
ABM-EPT-85734100375
ABM-EPT-857451253-1/289
ABM-EPT-857561504100
ABM-EPT-857682005125
ABM-EPT-857792256150
ABM-EPT-8578102506150
ABM-EPT-8579123008200
ABM-EPT-85801845010250
ABM-EPT-85812460013330
ABM-EPT-85823691517-1/2445
