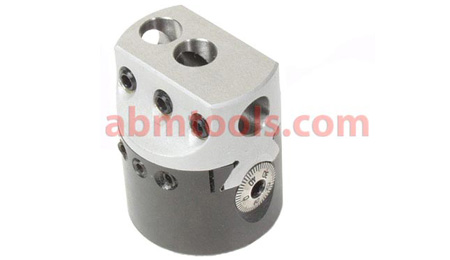

A small boring bar is inserted into one of the holes. The head can be shifted left or right with fine gradation by a screw, adjusting the diameter of the circle that the cutting tip swings through, thus controlling the hole size.

Loading...

Description

•  Machined from High grade steel with tool blocks hardened and ground.
•  Non-Reflecting Satin Chrome Body allows easy reading and adjustment.
•  Threaded back for interchangeable Shanks.
•  Ideal  for  Mill  or  Jig  Bore  Operations.
•  Inch Features  .0005”  and Metric features 0.2 mm least count (Boring dia. double of least count).
•  Very versatile and useful in any machine shop floor.
•  The construction of the head is so designed that it is very useful for making heavy  roughing cuts as well as more accurate finishing cuts.
•  Rigid designs and threaded interchangeable shanks for the boring head make it useful  for machines with different tapers.
•  Available in Metric and Inch Sizes.

Boring Heads have three major components:
1.   Boring head body
2.  Bar holder/insert holder
3.  Dial screw

METRIC SIZE
Metric Sizes
Item Code No.
Head Dia.
mm
Mounting
Thread
Boring Tool
Dia. mm
Center Dist. B/W
Holes mm
Min Bore
mm
Max Bore
mm
ABM-IMT-480030M14 x 1.069645
ABM-IMT-480138M14 x 1.0811860
ABM-IMT-4802501-1/2" x 18 TPI121610100
ABM-IMT-4803751-1/2" x 18 TPI202410220
ABM-IMT-48041001-1/2" x 18 TPI252510250

IMPERIAL SIZE
Imperial Sizes
Item Code No.
Head Dia.
mm
Mounting
Thread
Boring Tool
Dia. mm
Center Dist. B/W
Holes mm
Min Bore
mm
Max Bore
mm
ABM-IMT-48082”7/8” x 20 UNF1/2"3/8”3/8”4”
ABM-IMT-48092”1-1/2" x 18 TPI1/2"3/8”3/8”4”
ABM-IMT-48103”1-1/2" x 18 TPI3/4"15/16”3/8"9”
ABM-IMT-48114”1-1/2" x 18 TPI1"1”3/8”10”
