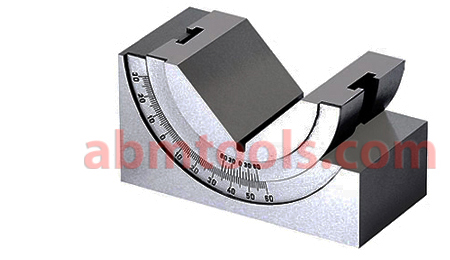

Precision Adjustable Angle Block Set

Precision Adjustable Angle Block Sets

Print

Made from fully hardened 50-55 HRC and ground tool steel, these precision Adjustable Angle Blocks are useful for most drilling, milling and set up jobs where a particular angle to a reference face is required.  Adjustable Angle Block allows the job to held  at any angle 0-60° for angular machining jobs



Compare

Product Description

• Ideal for Fast Angle Positioning for layout, drilling, grinding and milling setup tasks where a sufferance face to a particular angle is required.
• Has a 0 - 60º adjustable angle which can be used by locking hex screw on bottom.
• 1 graduation and + 10 minute angle accuracy.
• Squarness : 0.0004” (0.01 mm). Hardened to 50 - 55 HRC.



Item Code No.Overall
Length Inch
Overall Length
mm
Overall Width
Inch
Overall Width
mm
Overall Height
Inch
Overall Height
mm
V Capacity
Inch
V Capacity
mm
ABM-EPT-84903751-11/32341251-5/3229.5
ABM-EPT-84913-3/4952501-3/16301-29/3248.5
ABM-EPT-84923-3/4952501-3/4451-29/3248.5
