Pot Magnets
Esp
Imanes
Fr
Aimants
De
Magneten
• Has unlimited applications, such as magnetic fasteners, displays, Holding Maps etc.

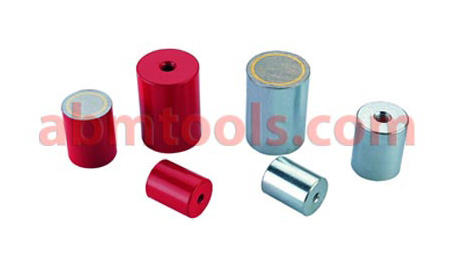

• Pot magnets are permanent magnet encased in a steel shell, which is sometimes called a pot, hence the name ‘pot‘ magnet. A permanent magnet emits a magnetic field without the need for any electricity.
• Has Tapped hole of 1/4” (20 TPI) on back side for attaching to fixtures and machines.• Comes with Nickle Plated Keepers.
• Powerful AlNiCo magnets encased in steel pot with aluminium insulation.
• Compact design with very strong magnetic pull makes these a favorite in all workshops, tool rooms etc.
| Item Code No. | Diameter Inch | Diameter mm | Height Inch | Height mm | Pull |
|---|---|---|---|---|---|
| ABM-IMT-5440 | 11/16 | 17.5 | 5/8 | 16 | 6 Lbs. / 2.7 Kg. |
| ABM-IMT-5441 | 13/16 | 20 | 3/4 | 19 | 10 Lbs. / 4.5 Kg |
| ABM-IMT-5442 | 1-1/16 | 27 | 1 | 25 | 14 Lbs. / 6.0 Kg. |
| ABM-IMT-5443 | 1-3/8 | 35 | 1-3/16 | 30 | 30 Lbs. / 13.5 Kg. |
| ABM-IMT-5444 | Set of 4 Pcs of the Above Mentioned Sizes | ||||
