Description

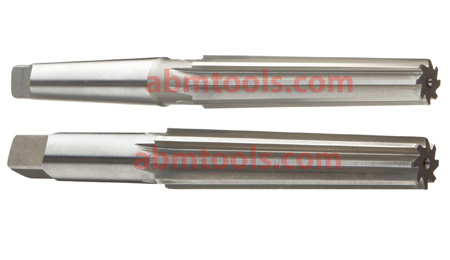

SOCKET REAMER / MORSE TAPER FINISHING / ROUGHING REAMER
• As per ANSI BS94.2

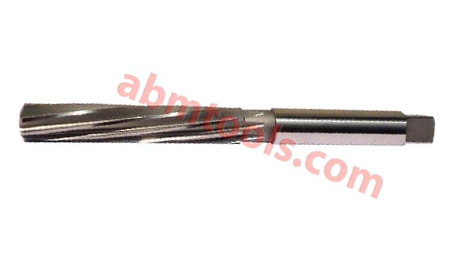

• Available in Straight Flute and Spiral Flute.
• Used for Finishing.
• Available in Straight Shank or Taper Shank.
• Taper Shanks is used for production Machine reaming of Tapered holes for Morse Taper Shanks.
• Straight Shank is used for finishing or removal of burs and Nicks in machine spindles.
• Made from High Speed Steel.
• Square end on straight shank allows reamer to be held in a Tap Wrench.
• Available in Roughing and Finishing Reamer.
• For use by Hand or Machine.
• Suitable for tool rooms & Workshop use.
• Rougher, opens out existing parallel holes.
• Finishing, to be used after rougher for final sizing.
| Hand Type Item code No. | No. of Morse Taper | Dia. of Reamer Small End | Dia. of Reamer Large End | Flute Length | Overall Length |
|---|---|---|---|---|---|
| ABM-CT-13220 | 0 | .2503” | .3674” | 2-1/4” | 3-3/4” |
| ABM-CT-13221 | 1 | .3674” | .5170” | 3” | 5” |
| ABM-CT-13222 | 2 | .5696” | .7444” | 3-1/2” | 6” |
| ABM-CT-13223 | 3 | .7748” | .9881” | 4-1/4” | 7-1/4” |
| ABM-CT-13224 | 4 | 1.0167” | 1.2893” | 5-1/4” | 8-1/2” |
| ABM-CT-13225 | 5 | 1.4717” | 1.8005” | 6-1/4” | 9-3/4” |
| While placing order please mention Roughing / Finishing Reamer Also mention Straight or Spiral Flute | |||||
| Machine Type Item code No. | No. of Morse Taper | Dia. of Reamer Small End | Dia. of Reamer Large End | Flute Length | Overall Length |
|---|---|---|---|---|---|
| ABM-CT-13226 | 0 | .2503” | .3674” | 2-1/4” | 5-11/32” |
| ABM-CT-13227 | 1 | .3674” | .5170” | 3” | 6-5/16” |
| ABM-CT-13228 | 2 | .5696” | .7444” | 3-1/2” | 7-3/8” |
| ABM-CT-13229 | 3 | .7748” | .9881” | 4-1/4” | 8-7/8” |
| ABM-CT-13230 | 4 | 1.0167” | 1.2893” | 5-1/4” | 10-7/8” |
| ABM-CT-13231 | 5 | 1.4717” | 1.8005” | 6-1/4” | 13-1/8” |
| While placing order please mention Roughing/Finishing Reamer Also mention Straight or Spiral Flute | |||||
