Description

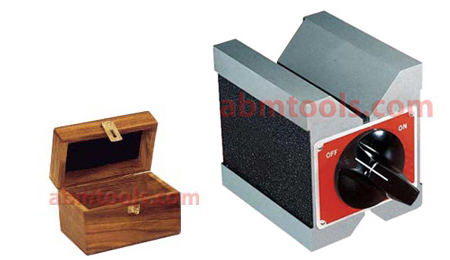

Magnetic V Blocks
Calzos Magnaticos en “V”
Vés Magnétique
Permanent -magnetischer Prismenblock
• Magnetic V Blocks required for Quality Control, Tool Room and Standard Room for variety of application in Tooling and Inspection purposes.
• Magnetic V-Block has a total 3 Magnetic surfaces.
• Top and bottom with 90º V-Angle and end surface opposite to switch.
• All working surfaces are precision ground.
• Ideal for holding, inspection and light machining.
• Suitable for holding Round or Irregular shaped for Scribing, Grinding etc., Grinding, Measuring and Machining.
• Accuracy of Vee is within 0.0003” (0.007 mm).
• A powerful, permanent magnet is controlled by Rotary ON / OFF Switch.
• Supplied in fine finished Wooden Box.
• Available in single and Dual Vee.
| Item Code No. | Pcs | Length Inch | Length mm | Width Inch | Width mm | Height Inch | Height mm |
|---|---|---|---|---|---|---|---|
| ABM-IMT-5590 | Single | 2-3/16 | 55 | 1-3/4 | 45 | 1-15/16 | 50 |
| ABM-IMT-5591 | Single | 2-3/4 | 70 | 2-1/8 | 73 | 2-7/8 | 73 |
| ABM-IMT-5592 | Single | 4 | 100 | 2-3/4 | 70 | 3-3/4 | 95 |
| ABM-IMT-5593 | Pair | 4 | 100 | 2-3/4 | 70 | 3-3/4 | 95 |
| ABM-IMT-5594 | Single | 6 | 150 | 3 | 75 | 3-3/4 | 95 |
| ABM-IMT-5595 | Pair | 6 | 150 | 3 | 75 | 3-3/4 | 95 |
| ABM-IMT-5596 | Single | 8 | 200 | 6 | 150 | 4 | 100 |
| ABM-IMT-5597 | Pair | 8 | 200 | 6 | 150 | 4 | 100 |
