Description

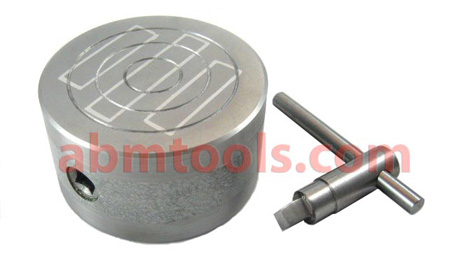

• Magnetic round chucks used when the workpiece needs to be rotated during machining.• They have magnetic poles that run concentric to each other throughout the diameter of the chuck and are separated from each other by a steel section.
• Magnetic lathe chuck are alternative method of mechanical methods of workholding and are becoming more common in a variety of metalworking industries.
• High Powered Chucks.• Solid Top and Bottom Plates assure retained accuracy.
• Full loading power over entire plates.
• Pole Divisions are arranged for holding Small, Thin and large pieces.
• Available in Standard Poles & Straight Poles.
| Item Code No. | Size Inch | Size mm |
|---|---|---|
| ABM-IMT-5630 | 3 | 75 |
| ABM-IMT-5631 | 4 | 100 |
| ABM-IMT-5632 | 5 | 125 |
| ABM-IMT-5633 | 6 | 150 |
| ABM-IMT-5634 | 8 | 200 |
| ABM-IMT-5635 | 9 | 225 |
| ABM-IMT-5636 | 10 | 250 |
| ABM-IMT-5637 | 12 | 300 |
| ABM-IMT-5638 | 15 | 380 |
| ABM-IMT-5639 | 16 | 400 |
| ABM-IMT-5640 | 18 | 450 |
| ABM-IMT-5641 | 20 | 500 |
| While placing order please mention Standard Poles or Straight Poles. | ||
