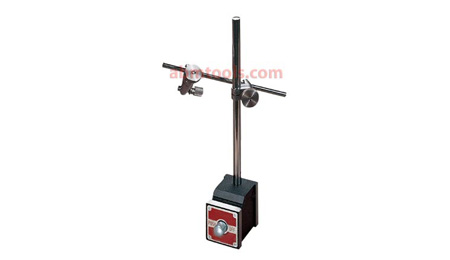

Magnetic Base – Push Button
Esp
Soporte Magnetico – Alta Potencia
Fr
Base Magnétique
De
Magnet-Messstativ
• A magnetic base is a magnetic fixture based on a magnet that can effectively be turned “on” and “off” at will.
• Used in optics and metalworking, e.g., to hold a dial indicator.
• Provided with ON / OFF Push Button.
• Specially designed to use with Dial Gauges to work on Surface Plate and Machine Tables.
• Magnetic Pull on base and Two Sides.
• Magnetic pull 25 Kg (55 lbs) approximately.
• Clamping system suitable for dial gauges with lug back of 1/4”. Clamping hole for 8 mm also available on request.
• Available with or without Fine Adjustment.
| Item Code No. | Overall Height Inch | Overall Height mm | Base Dimension l x w x h inch | Base Dimension l x w x h mm |
|---|---|---|---|---|
| ABM-IMT-5540 Without Fine Adjustment | 9-1/4″ | 235 | 1-7/8 x 1-3/4 x 2 | 48 x 45 x 50 |
| ABM-IMT-5541 With Fine Adjustment | 9-1/4″ | 235 | 1-7/8 x 1-3/4 x 2 | 48 x 45 x 50 |
