Description
• All sides are ground square and parallel to each other.
• V’s are central, parallel and square and are matched in pairs.
• Made of properly heat treated and hardened tool steel.
• Precision made from machinist’s and tool-maker use.
• Designed for Machine Shop.

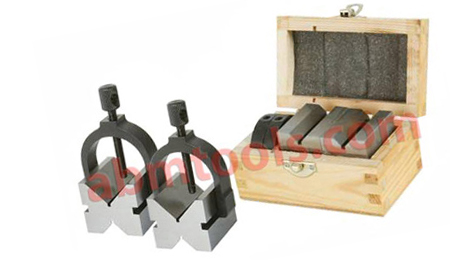

• Set Consists of Two V-Blocks and Two Clamps.
• Geometrical Accuracy as per BS 3731 / DIN 2274 Grade2.
• Permissible height difference for matched pair within .0003” or 8 microns.
• Parallelism tolerance of Vee axis to base within .0004” or (10+L/50) microns.
• Perpendicularity tolerance of end and side faces to base within .0005” or (10+H/25) microns.
| Item Code No. | Length x Width x Height Inch | Length x Width x Height mm | Clamping Capacity Inch | Clamping Capacity mm |
|---|---|---|---|---|
| ABM-EPT-8440 | 1-5/8 x 1-1/4 x 1-1/4 | 40 x 32 x 32 | 1 | 25 |
| ABM-EPT-8441 | 1-3/4 x 1-5/8 x 1-7/16 | 45 x 40 x 36 | 1 | 25 |
| ABM-EPT-8442 | 2 x 1-1/2 x 1-1/2 | 50 x 37 x 37 | 1-1/2 | 38 |
| ABM-EPT-8443 | 2-3/8 x 1-5/8 x 2 | 60 x 40 x 50 | 1-1/2 | 38 |
| ABM-EPT-8444 | 2-3/4 x 1-3/4 x 1-5/8 | 70 x 45 x 40 | 2 | 50 |
| ABM-EPT-8445 | 3 x 2-3/16 x 2-3/16 | 75 x 55 x 55 | 2 | 50 |
| ABM-EPT-8446 | 3-3/16 x 2-5/8 x 2-5/8 | 80 x 65 x 65 | 2-1/2 | 63 |
| ABM-EPT-8447 | 4 x 3 x 3 | 100 x 75 x 75 | 2-3/4 | 70 |
| ABM-EPT-8448 | 5 x 3-1/2 x 2-3/4 | 125 x 90 x 70 | 1-7/8 | 45 |
