Description

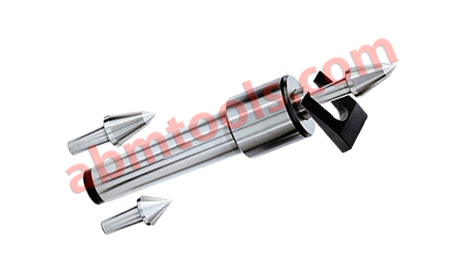

• This live center is available in two styles, one with standard body and three interchangeable tips consisting of a tool steel point of 60 degree, a carbide point of 60 degree & a 60 degree extended point.
• The second type has a low body with same tips as the standard body live Centre.
• Concentricity within 0.01 mm.
• This center is useful in multiple applications as the tips are interchangeable.
• Supplied with an extractor for changing points.
• Accuracy of the center is maintained even after frequent changing of the tips in view of proven assembly design.
| Item Code No. Standard | Item Code No. Low Body | Taper | Max RPM | Work Pc Weight |
|---|---|---|---|---|
| ABM-IMT-4400 | ABM-IMT-4403 | MT3 | 3500 | 150 |
| ABM-IMT-4401 | ABM-IMT-4404 | MT4 | 3500 | 250 |
| ABM-IMT-4402 | ABM-IMT-4405 | MT5 | 2500 | 650 |
