A clamp that fixes a workpiece to a lathe. A lathe dog, also known as a lathe carrier, is a device that clamps around the workpiece and allows the rotary motion of the machine’s spindle to be transmitted to the workpiece.

Loading...

Description

• lathe carrier is a clamp that fixes workpiece to a lathe . Lathe carriers also known as Lathe dog, is a device that clamps around the workpiece and allows the rotary motion of the machine’s spindle to be transmitted to the workpiece.
• It is Used to hold workpieces securely for smooth and even turning.
• Made of robust and rigid construction for maximum strength.
• Manufactured from high grade iron.
• Provided with square head screw.
• Sizes above and including 4” are fitted with two screws instead  of one.
• Used in conjunction with a catch-plate, these act as a driving device while turning material between centers.
• A ‘V’ groove in the body helps clamping of round jobs.
• Supplied  in  both  Straight  and  Bent Tail  Shape.

Item Code No.

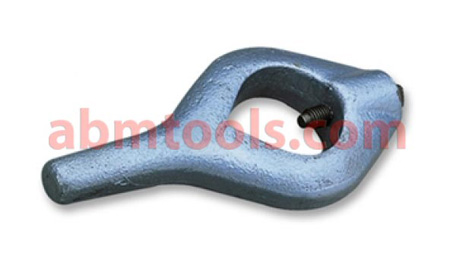

Straight Tail
Item Code No.

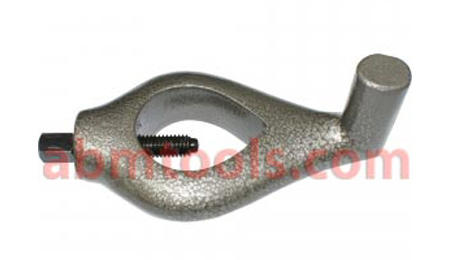

Bent Tail
Capacity InchCapacity mm
ABM-IMT-4430ABM-IMT-44491/4”6
ABM-IMT-4431ABM-IMT-44503/8”10
ABM-IMT-4432ABM-IMT-44511/2”13
ABM-IMT-4433ABM-IMT-44523/4”20
ABM-IMT-4434ABM-IMT-44531”25
ABM-IMT-4435ABM-IMT-44541-1/4”30
ABM-IMT-4436ABM-IMT-44551-1/2”40
ABM-IMT-4437ABM-IMT-44561-3/4”45
ABM-IMT-4438ABM-IMT-44572”50
ABM-IMT-4439ABM-IMT-44582-1/4”55
ABM-IMT-4440ABM-IMT-44592-1/2”65
ABM-IMT-4441ABM-IMT-44602-3/4”70
ABM-IMT-4442ABM-IMT-44613”75
ABM-IMT-4443ABM-IMT-44623-1/4”80
ABM-IMT-4444ABM-IMT-44633-1/2”90
ABM-IMT-4445ABM-IMT-44644”100
ABM-IMT-4446ABM-IMT-44654-1/2”115
ABM-IMT-4447ABM-IMT-44665”125
ABM-IMT-4448ABM-IMT-44676”150
