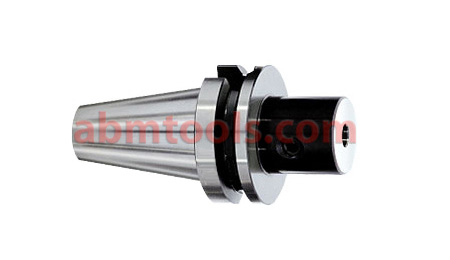

End Mill Holder (Weldon) BT MAS 403 / SL-SLA
Dimension in mm
| Item Code No. | Type | D | D1 | L | L1 | L2 | G | G1 |
|---|---|---|---|---|---|---|---|---|
| ABM-IMT-6950 | BT 30 / SL 6 x 065 | 6 | 25 | 65 | 17.5 | -- | M 12 | M 6 |
| ABM-IMT-6951 | BT 30 / SL 8 x 065 | 8 | 28 | 65 | 17.5 | -- | M 12 | M 8 |
| ABM-IMT-6952 | BT 30 / SL 10 x 065 | 10 | 35 | 65 | 19.5 | -- | M 12 | M 10 |
| ABM-IMT-6953 | BT 30 / SL 12 x 065 | 12 | 42 | 65 | 22 | -- | M 12 | M 12 |
| ABM-IMT-6954 | BT 30 / SL 14 x 065 | 14 | 44 | 65 | 22 | -- | M 12 | M 12 |
| ABM-IMT-6955 | BT 30 / SL 16 x 065 | 16 | 48 | 65 | 23.5 | -- | M 12 | M 14 |
| ABM-IMT-6956 | BT 30 / SL 18 x 065 | 18 | 50 | 65 | 23.5 | -- | M 12 | M 14 |
| ABM-IMT-6957 | BT 30 / SL 20 x 090 | 20 | 52 | 90 | 24.5 | -- | M 12 | M 16 |
| ABM-IMT-6958 | BT 40 / SLA 25 x 090 | 25 | 65 | 90 | 23.5 | -- | M 12 | M 18 x 2 |
| ABM-IMT-6959 | BT 40 / SL 6 x 065 | 6 | 25 | 65 | 17.5 | -- | M 16 | M 6 |
| ABM-IMT-6960 | BT 40 / SL 8 x 065 | 8 | 28 | 65 | 17.5 | -- | M 16 | M 8 |
| ABM-IMT-6961 | BT 40 / SL 10 x 065 | 10 | 35 | 65 | 19.5 | -- | M 16 | M 10 |
| ABM-IMT-6962 | BT 40 / SL 12 x 065 | 12 | 42 | 65 | 22 | -- | M 16 | M 12 |
| ABM-IMT-6963 | BT 40 / SL 14 x 065 | 14 | 44 | 65 | 22 | -- | M 16 | M 12 |
| ABM-IMT-6964 | BT 40 / SL 16 x 065 | 16 | 48 | 65 | 23.5 | -- | M 16 | M 14 |
| ABM-IMT-6965 | BT 40 / SL 18 x 065 | 18 | 50 | 65 | 23.5 | -- | M 16 | M 14 |
| ABM-IMT-6966 | BT 40 / SL 20 x 090 | 20 | 52 | 90 | 24.5 | -- | M 16 | M 16 |
| ABM-IMT-6967 | BT 40 / SLA 25 x 090 | 25 | 65 | 90 | 23.5 | 25 | M 16 | M 18 x 2 |
| ABM-IMT-6968 | BT 40 / SLA 32 x 090 | 32 | 72 | 90 | 23.5 | 28 | M 16 | M 20 x 2 |
| ABM-IMT-6969 | BT 50 / SL 6 x 075 | 6 | 25 | 75 | 17.5 | -- | M 24 | M 6 |
| ABM-IMT-6970 | BT 50 / SL 8 x 075 | 8 | 28 | 75 | 17.5 | -- | M 24 | M 8 |
| ABM-IMT-6971 | BT 50 / SL 10 x 075 | 10 | 35 | 75 | 19.5 | -- | -- | M 10 |
| ABM-IMT-6972 | BT 50 / SL 12 x 075 | 12 | 42 | 75 | 22 | -- | M 24 | M 12 |
| ABM-IMT-6973 | BT 50 / SL 14 x 075 | 14 | 44 | 75 | 22 | -- | M 24 | M 12 |
| ABM-IMT-6974 | BT 50 / SL 16 x 075 | 16 | 48 | 75 | 23.5 | -- | M 24 | M 14 |
| ABM-IMT-6975 | BT 50 / SL 18 x 075 | 18 | 50 | 75 | 23.5 | -- | M 24 | M 14 |
| ABM-IMT-6976 | BT 50 / SL 20 x 105 | 20 | 52 | 105 | 24.5 | -- | M 24 | M 16 |
| ABM-IMT-6977 | BT 50 / SL 25 x 105 | 25 | 65 | 105 | 23.5 | 25 | M 24 | M 18 x 2 |
| ABM-IMT-6978 | BT 50 / SL 32 x 105 | 32 | 72 | 105 | 23.5 | 28 | M 24 | M 20 x 2 |
| ABM-IMT-6979 | BT 50 / SL 40 x 105 | 40 | 84 | 105 | 23.5 | 34 | M 24 | M 24 x 2 |
