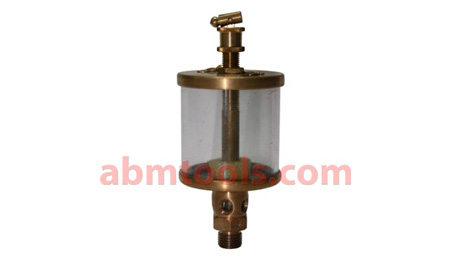

Drop Sight Feed Oil Lubricator

Drip Feed oiler – Drop sight Feed oil Lubricator

Print

Sight feed lubricators are ideal for continuous operations. Liquid is dispensed when the oiler is turned on with a toggle on the top of the oiler, fine adjustment is possible from the adjustable top nut and needle valve assembly. Solid Brass bodied sight feed lubricators, also known as drip feed oilers.

Compare

Product Description

A constant level lubricator is used to maintain the oil level in a piece of equipment that naturally depletes fluid through use, wear, friction, or evaporation.  Bearings, gearboxes, and pillow blocks typically require oil replenishment, especially when used in environments that are dirty or where heat is a factor.  Typical industries that utilize constant level lubricators include paper mills, cement plants, coal handling facilities, waste water treatment, nuclear plants, and mining operations. A constant level lubricator operates without a power source or moving mechanical parts.   It relies on the liquid seal principle to maintain a fixed liquid level in a bearing housing or gear box. It can function reliably over long periods with little or no monitoring.



• Conventional Gun Metal drop sight feed oiler.
• These oilers have shut off and needle valve oil feed adjustment  features.
• A sight glass in shank is provided so that the operator can adjust the feed to proper volume.
• This type of oiler is especially adopted where regulation of the oil  feed is required.
• These oilers are recommended where supply of oil under visible  control is required.



Item Code No.SizeCapacityThread  Specification
ABM-LP-1188030 mm20 ml1/8” or 1/4” B.S.P.
ABM-LP-1188140 mm50 ml1/8” or 1/4” B.S.P.
ABM-LP-1188252 mm100 ml1/4” or 3/8” B.S.P.
ABM-LP-1188362 mm170 ml1/4” or 3/8” B.S.P.
ABM-LP-1188477 mm320 ml3/8” or 1/2” B.S.P.
ABM-LP-1188588 mm500 ml3/8” or 1/2” B.S.P.
