Die Holder -Shank Type
Esp
Porta Terrajas
Fr
Porte – filières monobloc
De
Schneideisenhalter

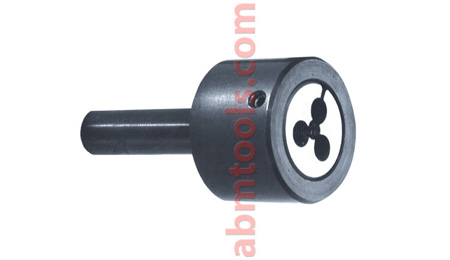

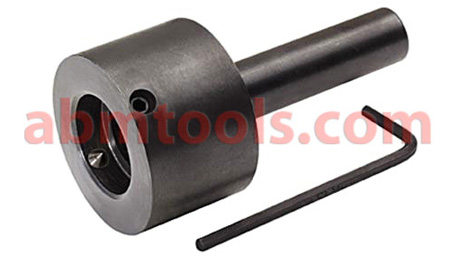

DIE HOLDER (SHANK TYPE)
FLOATING ROUND DIE HOLDER
• Ideal for short or medium run threading of shafts.
• Can be used safely on Lathe, Milling Machine and Tapping heads.
• Single piece construction.
• Shank Length 2” (50 mm). Body Length 1” (25.4 mm).
• Available with and without Round Die.
| Item Code No. | Die Size Inch | Die Size mm | Shank Dia. Inch | Shank Dia. mm | Body Dia. Inch | Body Dia. mm |
|---|---|---|---|---|---|---|
| ABM-IMT-6430 | 13/16” | 20 | 1/2” | 12.7 | 1-1/2” | 38 |
| ABM-IMT-6431 | 1” | 25 | 1/2” | 12.7 | 1-1/2” | 38 |
| ABM-IMT-6432 | 1-1/2” | 38 | 3/4” | 19 | 2” | 50 |
| Item Code No. | Die Size Inch |
|---|---|
| ABM-IMT-6433 | 2 Pc Set Consisting 13/16″ (20 mm) and 1″ (25 mm) |
| ABM-IMT-6434 | 3 Pc Set consisting 13/16″ (20 mm), 1″ (25 mm)and 1-1/2″ (38 mm) |
