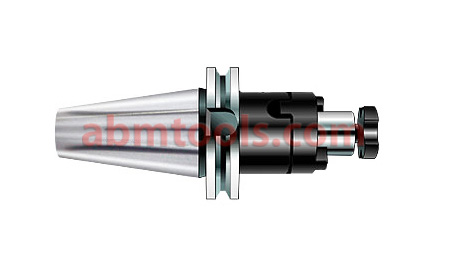

Comb-Shell / Shoulder Mill Arbor BT MAS 403 / FMC

Description

Dimension in mm

Item Code No.	Type	D	D1	L	L1	G	G1
ABM-IMT-7050	BT 30 / FMC 22 x 045	22	40	45	19	M 12	M 10
ABM-IMT-7051	BT 30 / FMC 22 x 045	22	40	45	19	M 16	M 10
ABM-IMT-7052	BT 30 / FMC 22 x 090	22	40	90	19	M 16	M 10
ABM-IMT-7053	BT 40 / FMC 27 x 060	27	48	60	21	M 16	M 12
ABM-IMT-7054	BT 40 / FMC 27 x 090	27	48	90	21	M 16	M 12
ABM-IMT-7055	BT 40 / FMC 32 x 060	32	58	60	24	M 16	M 16
ABM-IMT-7056	BT 40 / FMC 32 x 075	32	58	75	24	M 16	M 16
ABM-IMT-7057	BT 40 / FMC 40 x 060	40	76	60	27	M 16	M 20
ABM-IMT-7058	BT 50 / FMC 22 x 060	22	40	60	19	M 24	M 10
ABM-IMT-7059	BT 50 / FMC 22 x 105	22	40	105	19	M 24	M 10
ABM-IMT-7060	BT 50 / FMC 27 x 045	27	48	45	21	M 24	M 12
ABM-IMT-7061	BT 50 / FMC 27 x 090	27	48	90	21	M 24	M 12
ABM-IMT-7062	BT 50 / FMC 27 x 150	27	48	150	21	M 24	M 12
ABM-IMT-7063	BT 50 / FMC 32 x 045	32	58	45	24	M 24	M 16
ABM-IMT-7064	BT 50 / FMC 32 x 075	32	58	75	24	M 24	M 16
ABM-IMT-7065	BT 50 / FMC 32 x 105	32	58	105	24	M 24	M 16
ABM-IMT-7066	BT 50 / FMC 40 x 060	40	76	60	27	M 24	M 20
